IC (inflatable curtain): Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

First read Preparation .

NOTE:

The hose clamp must not be opened under any circumstances. If the clamp is opened, it will not be possible to guarantee the safety of the joint. Leakage may result which would compromise the function.

Remove:

The headlining according to Removing the headlining .

Fig 2: Inflatable Curtain Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector according to Igniter wire connector .

Fig 3: Inflatable Curtain Clips (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

clips A, B, C and D.
CAUTION:
First remove clip A from above the B post panel.
the screw (3). Unhook the inflatable curtain.

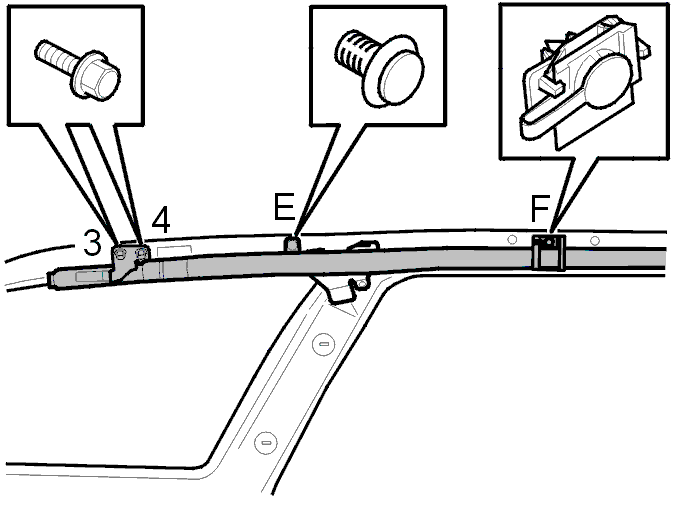

Fig 4: Inflatable Curtain Clips (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

clips E and F
screws 3 and 4 and lift the inflatable curtain out.
