Installing the inflatable curtain

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

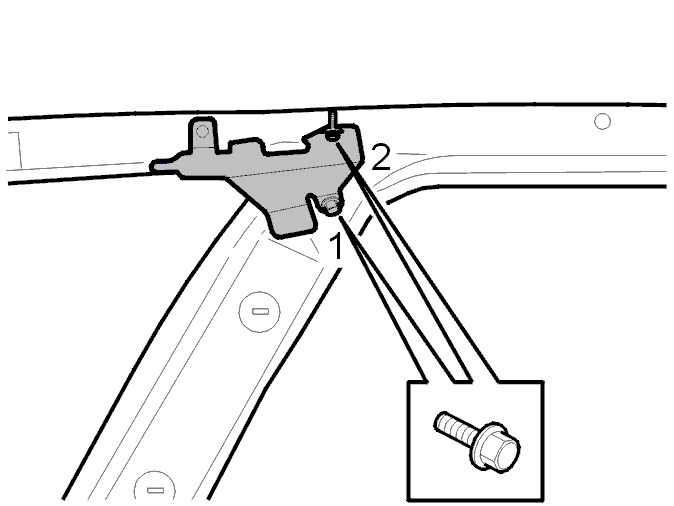

Fig 1: Inflatable Curtain Deflector

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

The IC (inflatable curtain) module must not be reinstalled if it has been dropped onto the ground or similar.

Install:

the deflectors and screws.

NOTE:

The deflector on the C/D post must be installed before the inflatable curtain module is installed

Fig 2: Inflatable Curtain Clips (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift in and open the packaging according to the instructions.

Install clips E and F.

Remove the packaging by pulling it straight downwards.

NOTE:

Ensure that no bits of paper remain.

Install screws 3 and 4.

Fig 3: Inflatable Curtain Clips (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the inflatable curtain into place. Install the screw (3).

NOTE:

It is very important that the hook is correctly installed.

Install clips A, B, C and D.

Tighten all screws. Tighten to 10 Nm .

Install:

The SRS connector
The headlining according to Installing the headlining .

CAUTION:

When installing the IC (inflatable curtain), part of the decal on the curtain must be ripped off and stuck on the decal in the door opening.
