Removing the lock mechanism for the tailgate
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the panel according to Removing the tailgate panel
- the control rod from the lock by pressing the pin out

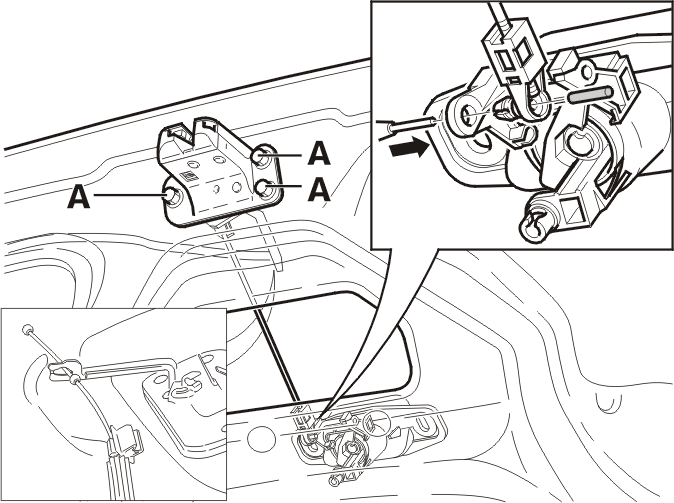

- the 3 screws (A)
- the lock mechanism
- the connectors.
NOTE:
The following applies to cars with emergency opening handles on the inside. Pry apart the eyelet on the lever. Remove the cable.
