Removing the tailgate panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

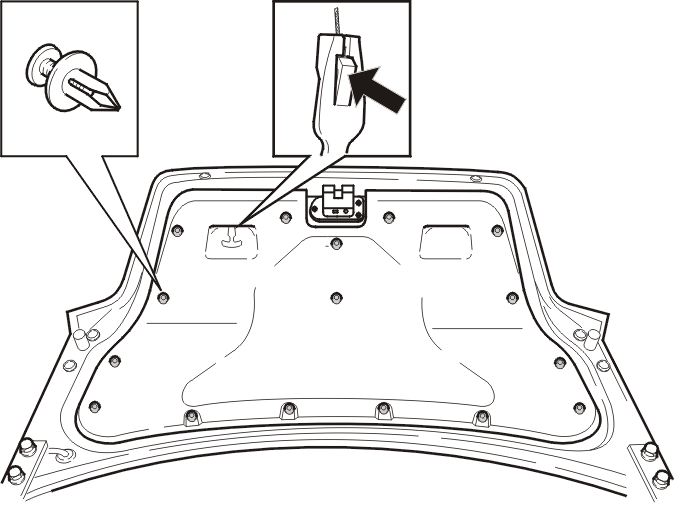

Fig 1: Tailgate Panel Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For cars with emergency opening handles on the inside.

Remove the emergency opening handle by pressing down the retaining clip on the handle and removing the cable.

Unscrew the clips (screw out 4 mm ). Remove the clips
Check the clips
Carefully remove the panel.
