Installing cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Before installing grease the cable with Vaseline (1161150-6).

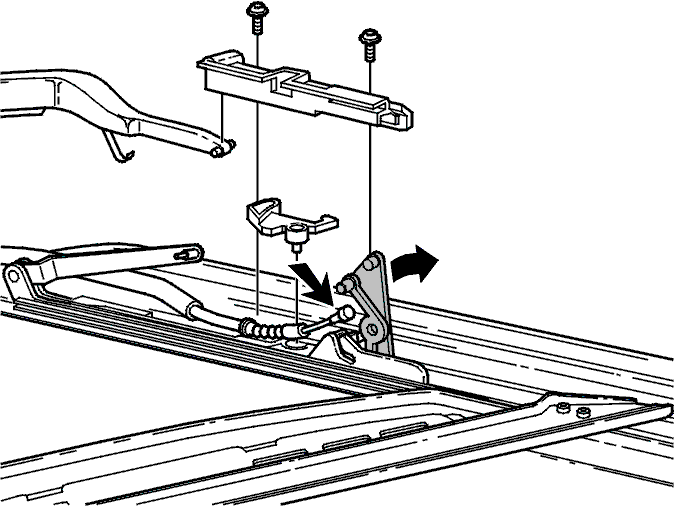

- Push the cable in until it clicks into the gripper.
- Fit the block holders (with locking arm) and the wind deflector.
CAUTION:
Push the mechanism with the cable as far forward as possible so that the maximum ventilation position is reached (the arm as high as possible).
- Install the electrical motor.
- Check working with the tool from the car. See Owner's manual.
- Fit the glass panel and adjust it, see Removing/installing the glass panel .
