Removing VGLA-control module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

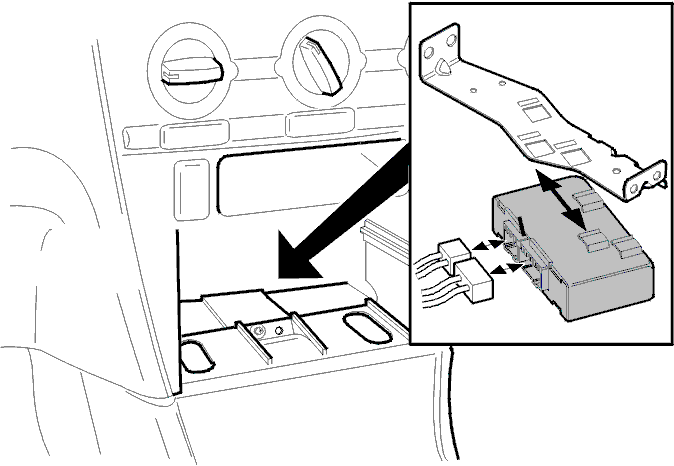

Fig 1: Removing/Installing VGLA-Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

radio and center console's storage compartment. see The radio panel .
front tunnel console according to Front center console (Only applies to automatic transmission ).

Release three lock lugs and lift away the control module.

Disconnect the connectors.

Remove control module.
