Low Stall Speed

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Conditions of work element Check above are fulfilled.

If the actual stall speed falls below the normal value by more than 300 RPM:

Try with a new torque converter. (See Gearbox/torque converter, replacing for gasoline engines and Gearbox/torque converter, replacing for diesel engines for the procedures that also apply to replacement of torque converter.)

Recheck stall speed after torque converter replacement. If the problem remains, replace the transmission:

For gasoline engines, see Gearbox/torque converter, replacing .
For diesel engines, see Gearbox/torque converter, replacing .

Noise:

Replace the transmission:

For gasoline engines, see Gearbox/torque converter, replacing .
For diesel engines, see Gearbox/torque converter, replacing .

Recheck stall speed after transmission replacement.

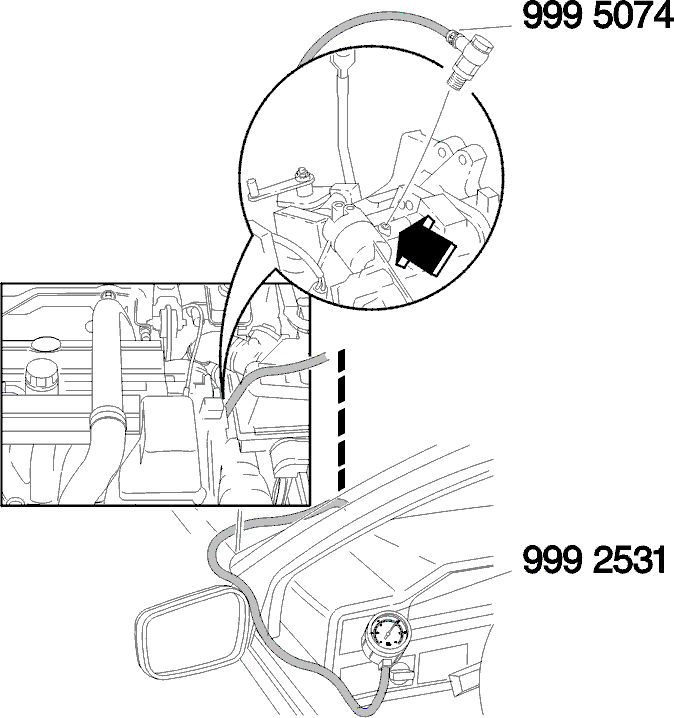

Fig 1: Identifying Tools 9995074 And 9992531

Courtesy of VOLVO CARS OF NORTH AMERICA.
