Low Stalling Speed
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
The test conditions described in Check above have been met.
Try a new torque converter if the stall speed recorded is below the normal value by more than 300 RPM:
For gasoline engines: see Gearbox, removing and Transmission, installing . Diesel engines: see Removing the transmission and Transmission, installing .
Check the stalling speed again after replacing the torque converter. Replace the transmission if the fault persists:
- For gasoline engines: see Gearbox, removing and Transmission, installing
- Diesel engines: see Removing the transmission and Transmission, installing .
Noise:
Replace the transmission:
- For gasoline engines: see Gearbox, removing and Transmission, installing
- Diesel engines: see Removing the transmission and Transmission, installing .
Check the stalling speed again after replacing the transmission.
After the check is completed:
Remove the air cleaner (ACL) housing. See Remove the air cleaner (ACL) housing .
Remove the transmission cable.

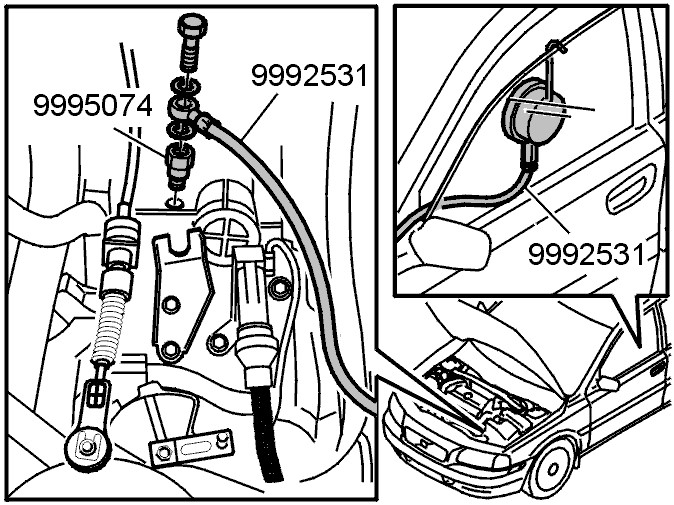

Remove both the manometer connection and the manometer.
Install:
- the test plug. Check that the O-ring is undamaged. Replace if necessary. Tighten to 8 Nm
- the transmission cable
- the air cleaner (ACL) housing. See Install the air cleaner (ACL) housing .
