Drive Shaft Left, Replacing: Installation: Overview

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For tightening torques, see Tightening Torque .

Lubricate the drive shaft sealing surface. Use oil. See: Lubrication transmission .

Press the drive shaft into the transmission. Check that the snap ring is in the groove in the transmission by pulling the constant velocity joint.

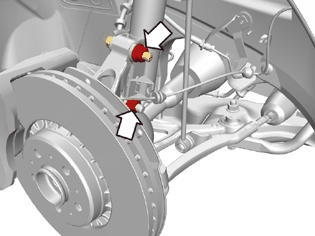

Fig 1: Identifying Strut To Spindle Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use new screws and nuts.

Adjust the position of the wheel spindle/spring strut. See Wheel Knuckle/Spring Strut, Calibrating .

Fig 2: Identifying Tire Pressure Sensor Line And Grommets

Courtesy of VOLVO CARS OF NORTH AMERICA.

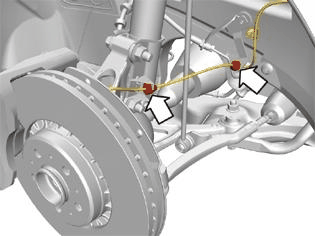

Fig 3: Identifying Grommet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see Summary Of Tightening Torques For Specific Components .

Fig 4: Removing Drive Shaft Screw Using A Screwdriver As A Counter Hold On Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see Summary Of Tightening Torques For Specific Components .
