Installing the Torque Converter Screws

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

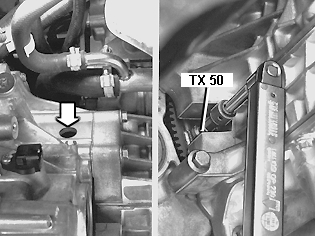

Fig 1: Identifying Torx TX50

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Use new screws, Torx TX50.

Align the torque converter with the carrier plate by turning the engine with the crankshaft pulley nut and turning the torque converter (accessible through the hole in the cover.)

Fit all 6 screws hand tight. Tightened the screws sufficiently so the heads lie against the carrier plate. Now tightened with 35 Nm . Socket Torx TX 50 (earlier models TX40 must be changed to TX50).

NOTE: Remove the socket wrench from the crankshaft.

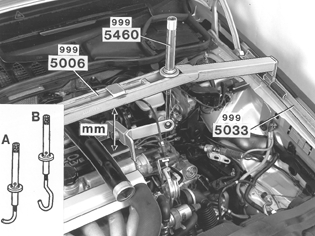

Fig 2: Identifying Support, Lifting Bar & Lifting Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the engine and transmission

Unscrew the lifting hook 9995460 to the previously noted measurement between lifting bar and the spark plug cap. See item Installing the lifting device .

Ensure that the dip stick pipe is free of the fan and that no hoses or cables are crimped.
