Damper Motor, Recirculation, Replacing: Recirculation: Installation

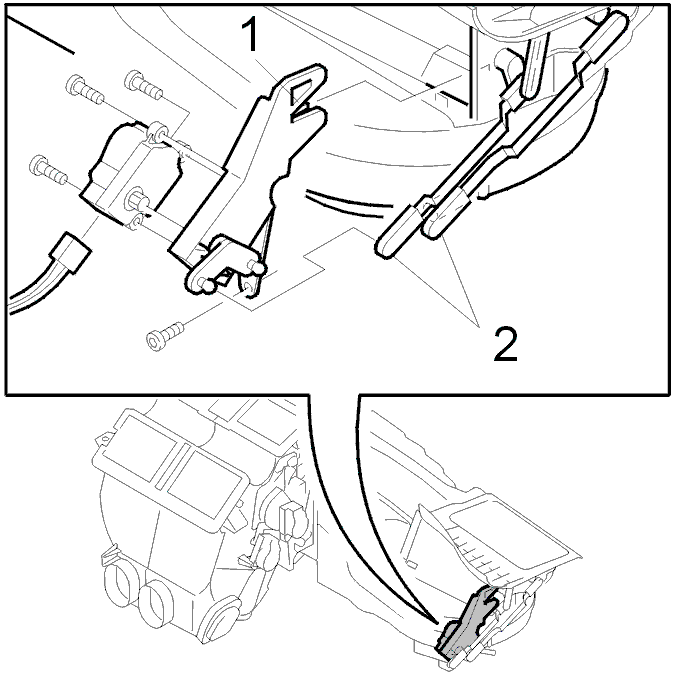

Fig 1: Bracket From Mounting And Lever From Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Position the motor on the bracket
• Place the bracket and motor in position
• Press the upper mounting into place
• Install the screw for the bracket
• Place the arms from the heater unit onto the motor levers and press into place. Take care not to damage the arms
• Install the switch
• Install the glove compartment. See Glove Compartment, Replacing
• Carry out self-adjustment of the damper motor end positions. This is carried out via VIDA communication.
