Glove Compartment, Replacing

Remove the soundproofing panel on the passenger side. See Replacing the Passenger Side Soundproofing Panel .

Open the glove compartment.

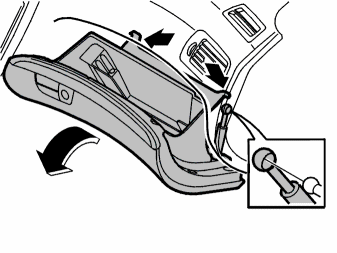

Fig 1: Sliding Two Hooks On Each Side Past Tabs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the two hooks on each side past the tabs.

Remove the gas strut by pulling it straight out.

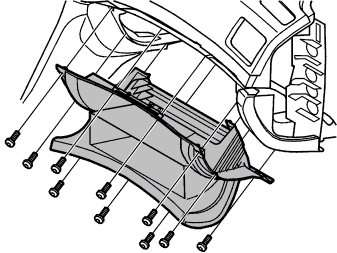

Fig 2: Removing Ten Screws And Glove Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• ten screws
• the connector for the glove compartment lighting
• the connector for the foot well lighting
• the glove compartment.

Install:

In reverse order.

Transfer those components that do not need to be replaced.
