Close off all gas sources

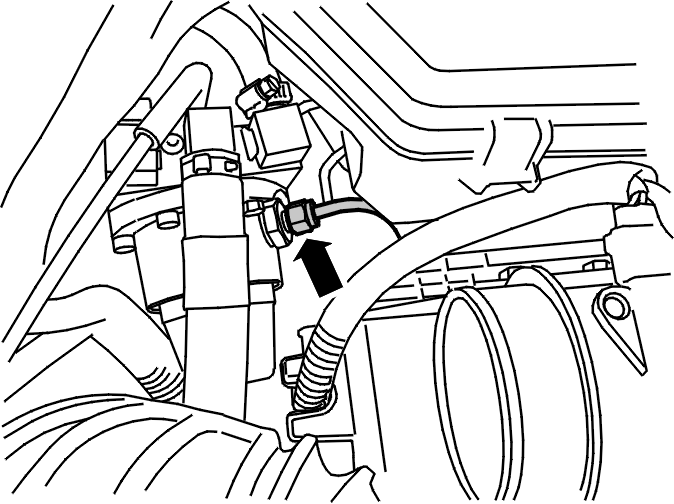

Fig 1: Locating Gas Tank Connector
GLL101450Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the relay. See Removing the relay .

Close the valves for the rear tank, see Closing the rear valve for the gas tank , and the front tanks, see Closing the rear valve for the gas tank .

CAUTION:

Remove the connection outdoors.

Slacken off the connection on the regulator until any gas begins to hiss out.
