Close front gas tank valves

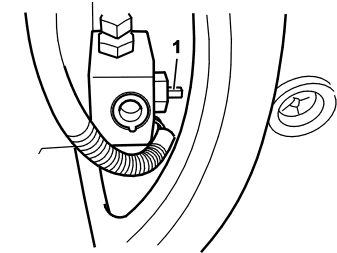

Fig 1: Identifying Front Gas Tank Valve

GLL101444

Courtesy of VOLVO CARS OF NORTH AMERICA.

Close the valves (1) on the both front gas tanks.
