Remove relay

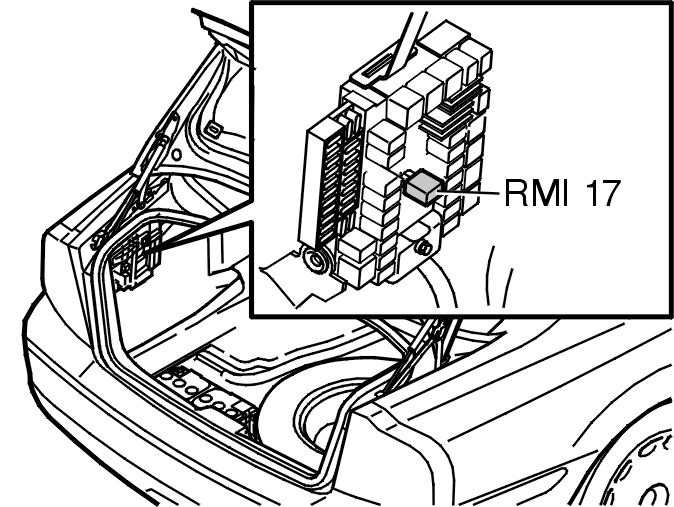

Fig 1: Identifying Relay
GLL101507Courtesy of VOLVO CARS OF NORTH AMERICA.

Start the engine. Ensure that the engine is running on gas (CNG or LPG).

Remove the relay from position RMI 17.

The engine will stop after approximately one minute.
