Overview - Condenser

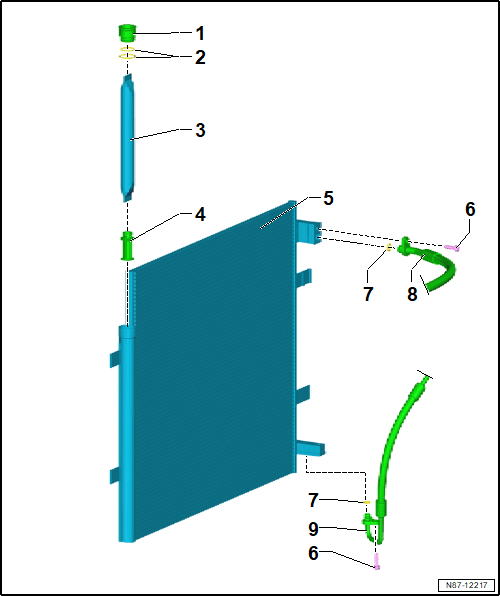

GWWN87-12217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Plug
    • Replace after removing
    • 10 Nm
  2. Seal
    • Quantity: 2
    • Replace after removing
  3. Desiccant Bag
  4. Filter
    • Replace after removing
  5. Condenser
  6. Bolt
  7. Seal
  8. Refrigerant Line
  9. Refrigerant Line
