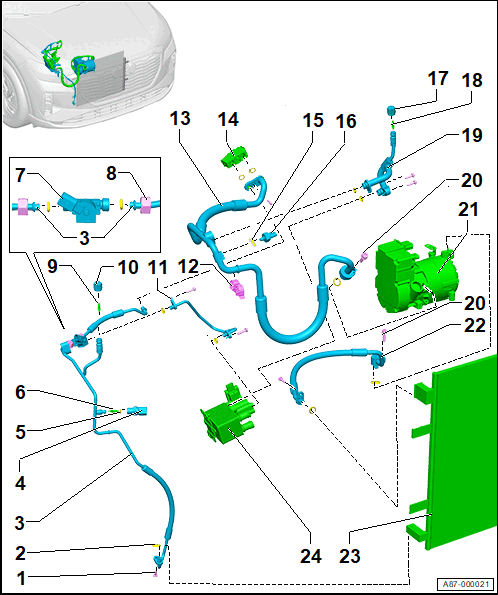

Overview - Refrigerant Lines

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Applies to all shown connection locations
- 8 Nm
Seal
- Applies to all shown connection locations
- Replace after removing
Refrigerant Line
- Refer to Refrigerant Line from Condenser to Expansion Valve, Removing and Installing .
Refrigerant Circuit Pressure Sensor -G805-
- Refer to REFRIGERANT CIRCUIT PRESSURE SENSOR -G805-, REMOVING AND INSTALLING, R1234YF .
- 8 Nm
Seal
- Replace after removing
Valve insert
- 1.5 Nm
Heater and A/C Unit Refrigerant Shut-Off Valve -N541-
- Refer to Heater and A/C Unit Refrigerant Shut-Off Valve -N541-, Removing and Installing .
Union Nut
- 16.5 Nm
Evacuating and Charging Valve, High-Pressure Side
- Refer to Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R744 or Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R1234YF .
- 1.5 Nm
High Pressure Valve Cap
- 1 Nm
Refrigerant Line
- Refer to Refrigerant Line, High-Voltage Battery Heat Exchanger to High Pressure Line, Removing and Installing .
Bracket
Refrigerant Line
- Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING .
Expansion Valve
- Refer to Overview - Evaporator Housing, R744 or Overview - Evaporator Housing, R1234YF .
- Refer to Expansion Valve, Removing and Installing .
Seal
- Replace after removing
A/C Pressure/Temperature Sensor -G395-
- Refer to A/C Pressure/Temperature Sensor G395, Removing and Installing, R744 or A/C Pressure/Temperature Sensor G395, Removing and Installing, R1234YF .
- 10 Nm
Low Pressure Valve Cap
- 1 Nm
Evacuating and Charging Valve, Low-Pressure Side
- Refer to Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R744 or Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R1234YF .
- 1.5 Nm
Refrigerant Line
- Refer to Refrigerant Line, High-Voltage Battery Heat Exchanger to Low Pressure Line, Removing and Installing .
Bolt
- Quantity: 2
- 20 Nm
A/C Compressor -VX81-
- Refer to Overview - A/C Compressor .
- Refer to A/C Compressor -VX81-, Removing and Installing, R744 or A/C Compressor -VX81-, Removing and Installing, R1234YF .
Refrigerant Line
- Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING .
Condenser
- Refer to Overview - Condenser .
- Refer to Condenser, Removing and Installing .
High-Voltage Battery Heat Exchanger
- Refer to Overview - High-Voltage Battery Heat Exchanger .
- Refer to High-Voltage Battery Heat Exchanger, Removing and Installing, R744 or High-Voltage Battery Heat Exchanger, Removing and Installing, R1234YF .
