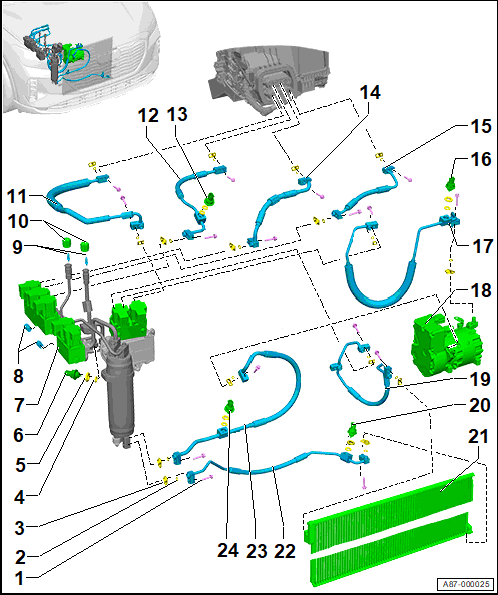

Overview - Refrigerant Lines

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Applies to all shown connection locations
- Replace after removing
- 13 Nm
Seal
- Applies to all shown connection locations
- Replace after removing
Loss Protection Device
- Applies to all shown connection locations
- Replace after removing
Seal
- Applies to all A/C pressure/temperature sensors shown
- Replace after removing
Dust Protector
- Applies to all A/C pressure/temperature sensors shown
- Replace after removing
A/C Pressure/Temperature Sensor 2 -G826-
- Refer to A/C Pressure/Temperature Sensor 2 G826, Removing and Installing .
- 40 Nm
Heat Pump Valve Unit
- Refer to Overview - Heat Pump Valve Unit .
- Refer to Heat Pump Valve Unit, Removing and Installing .
Pressure Relief Valve
- Left thread
- Replace after removing
- Refer to Pressure Relief Valve, Removing and Installing .
- 14 Nm
Evacuating and Charging Valve
- Refer to Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R744 or Evacuating and Charging Valve, Removing and Installing, Low and High Pressure Side, R1234YF .
- 2 Nm
Valve Cap
Refrigerant Line
- Refer to REFRIGERANT LINE BETWEEN A/C COMPRESSOR AND REFRIGERANT SHUT-OFF VALVE 2 AND 3 N641 / N640, REMOVING AND INSTALLING .
Refrigerant Line
- Refer to Refrigerant Expansion Valve 2 and 3 N638 / N637 and Evaporator, Removing and Installing .
A/C Pressure/Temperature Sensor 4 -G828-
- Refer to A/C Pressure/Temperature Sensor 4 G828, Removing and Installing .
- 40 Nm
Refrigerant Line
- Refer to Refrigerant Line in between the Heat Pump Valve Unit and the Evaporator, Removing and Installing .
Refrigerant Line
- Refer to Refrigerant Line between Refrigerant Expansion Valve 1 / Refrigerant Shut-Off Valve 1 N636 / N696 and Heat Condenser, Removing and Installing .
A/C Pressure/Temperature Sensor -G395-
- Refer to A/C Pressure/Temperature Sensor G395, Removing and Installing, R744 or A/C Pressure/Temperature Sensor G395, Removing and Installing, R1234YF .
- 40 Nm
Refrigerant Line
- Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING .
A/C Compressor -VX81-
- Refer to Overview - A/C Compressor .
- Refer to A/C Compressor -VX81-, Removing and Installing, R744 or A/C Compressor -VX81-, Removing and Installing, R1234YF .
Refrigerant Line
- Refer to Refrigerant Line between Gas Cooler and Refrigerant Shut-Off Valve 2 N640, Removing and Installing .
A/C Pressure/Temperature Sensor 3 -G827-
- Refer to A/C Pressure/Temperature Sensor 3 G827, Removing and Installing .
- 40 Nm
Gas Cooler
- Refer to Gas Cooler, Removing and Installing. .
Refrigerant Line
- Refer to Refrigerant Line between Dryer and Condenser / Gas Cooler, Removing and Installing .
Refrigerant Line
- Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING .
A/C Pressure/Temperature Sensor 5 -G829-
- Refer to A/C PRESSURE/TEMPERATURE SENSOR 5 G829, REMOVING AND INSTALLING .
- 40 Nm
