Refrigerant Line From Condenser To Expansion Valve, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- If necessary, remove the sections of the air duct. Refer to OVERVIEW - INTAKE MANIFOLD - 4 CYL or OVERVIEW - INTAKE MANIFOLD - 6 CYL .

-- If necessary, remove parts of the charge air system from the air routing. Refer to OVERVIEW - CHARGE AIR SYSTEM .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the engine bracket. Refer to OVERVIEW - ASSEMBLY MOUNTS - 4 CYL or OVERVIEW - ASSEMBLY MOUNTS - 6 CYL .

Vehicles with Refrigerant R134a

-- Discharge the refrigerant circuit. Refer to the appropriate Service Information .

Vehicles with Refrigerant R1234yf

-- Discharge the refrigerant circuit. Refer to WORKING WITH A/C SERVICE STATION .

Continuation for all vehicles

CAUTION:

Danger of frostbite due to refrigerant coming out under pressure.

Frostbite on the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Extract refrigerant and open the refrigerant circuit immediately.

- If more than 10 minutes have elapsed since evacuating the refrigerant and the refrigerant circuit was not opened, evacuate the refrigerant again. Evaporation can cause pressure to develop in the refrigerant circuit.

-- For all following procedures immediately seal all the open lines and connections with clean plugs from the Engine Bung Set:VAS 6122 .

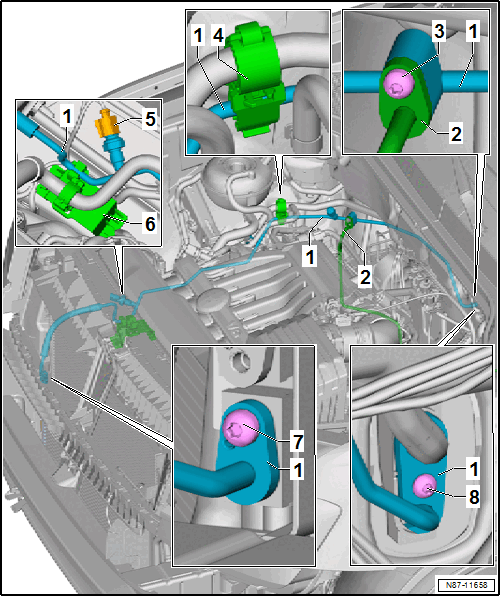

-- Remove the bolts -3-, -7- and -8-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the refrigerant line -2- from the refrigerant line -1-.

-- Unclip the refrigerant line -1- from the brackets -4- and -6-.

-- Disconnect the connector -5-.

-- Remove the refrigerant line -1-.
