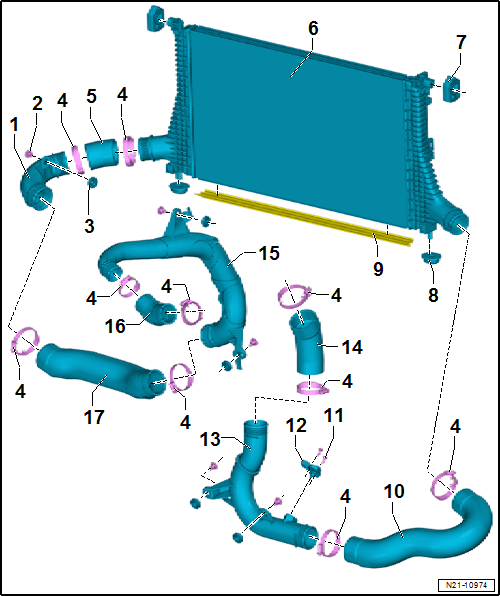

Overview - Charge Air System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Assembly of screw-type clamps for the charge air hose connections. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Before testing or performing a repair, check all air duct pipes and hoses and vacuum lines for leaks and secure seating.
- Air Duct Pipe
- Bolts
- 7 Nm
- Spacer Sleeves
- Screw-Type Clamps
- 5.5 Nm
- Charge Air Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- See note. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- Bearings
- For the upper charge air cooler
- Tighten bolts to 5 Nm.
- Rubber Bushing
- For the lower charge air cooler
- Lower Seal
- Charge Air Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Bolts
- For the Charge Air Pressure Sensor -G31-
- 5 Nm
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Air Duct Pipe
- Charge Air Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Air Duct Pipe
- Removing and Installing. Refer to TURBOCHARGER AIR DUCT PIPE/CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Charge Air Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Charge Air Hose
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
