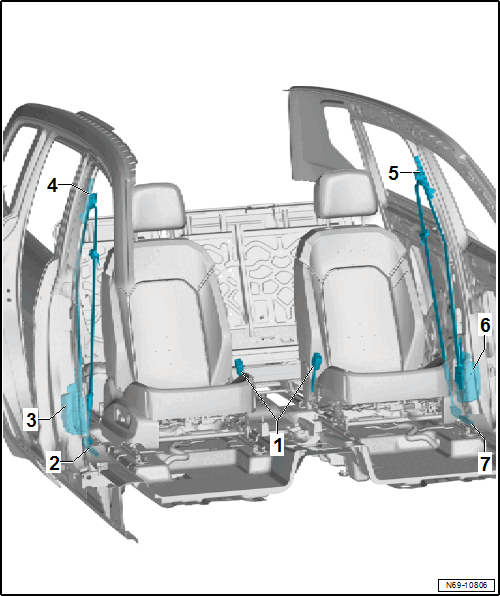

Component Location Overview - Front Seat Belts And Mounting Points
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Front Seat Belt Latches
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Belt End Fitting Tensioner
- Guide through the B-pillar trim panel
- Component of the front three-point seat belt
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- With Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Height Adjuster
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Seat Belt Height Adjuster
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- For the front three-point seat belt
- With Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Belt End Fitting Tensioner
- Guide through the B-pillar trim panel
- Component of the front three-point seat belt
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
