Overview - Front Seat Belt Latch

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

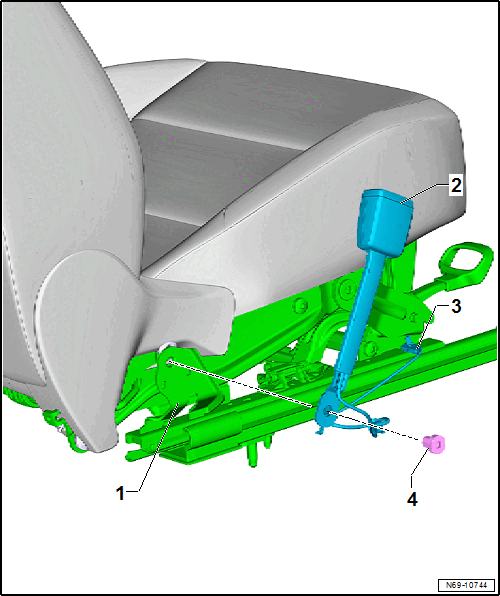

Fig 1: Exploded View Of Front Seat Belt Latch
GWWN69-10744Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Seat
    • Driver side: with Driver Seat Belt Switch -E24-
    • Front passenger side: with Front Passenger Seat Belt Switch -E25-
    • Removing and installing
    • Always replace if the belt tensioner has deployed when the belt is buckled
  2. Seat Belt Latch
  3. Wiring Harness
  4. Bolt
    • Replace every time it is loosened
    • 40 Nm
