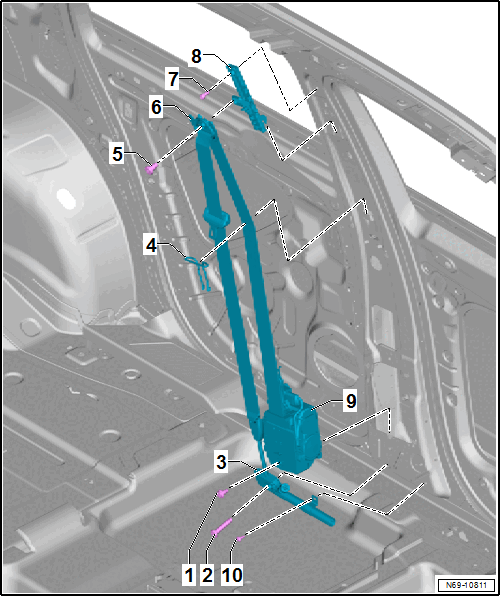

Overview - Front Three-Point Seat Belt
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- For attaching of automatic belt retractors
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Bolt
- Belt end fitting tensioner rear bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Belt End Fitting Tensioner
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
- Front Seat Belt Guide
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- When installing, pay attention to the correct installation position
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Seat Belt Relay
- Must swing into vertical position or carrier direction by itself after tightening the screw.
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 20 Nm
- Seat Belt Height Adjuster
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
- Automatic Belt Retractor
- Driver side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- On vehicles with reversible seat belt tensioner a test plan in the appropriate Guided Fault Finding must be performed after replacing the seat belt.
- Bracket Bolt
- 6 Nm
- Self-locking
- Replace after removal
