Brake Cylinder, Checking For Leaks
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Trim Removal Wedge: 3409
Removing
-- Refer to WHEEL, REMOVING .

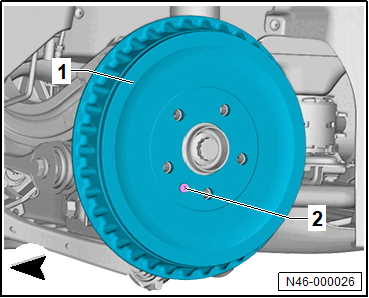

-- Remove the bolt -2- and also remove the brake drum -1-.
CAUTION:
Damage to the brake cylinder dust boot.
- Carefully remove the dust boot.

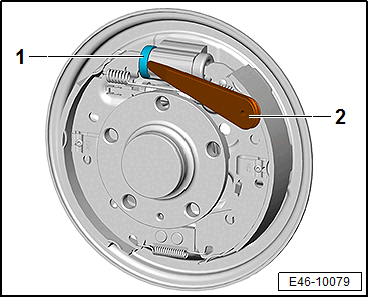

-- Use the Trim Removal Wedge: 3409 -2- to unclip the dust boot -1-.
-- If there is brake fluid in the dust boot, replace the brake cylinder.
-- Position the brake drum and secure with the bolt.
-- Refer to WHEEL, INSTALLING .
Tightening Specifications
- Refer to Overview - Rear Brakes, Drum Brakes .
- Refer to Overview - Brake Shoes .
