Overview - Rear Brakes, Drum Brakes

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

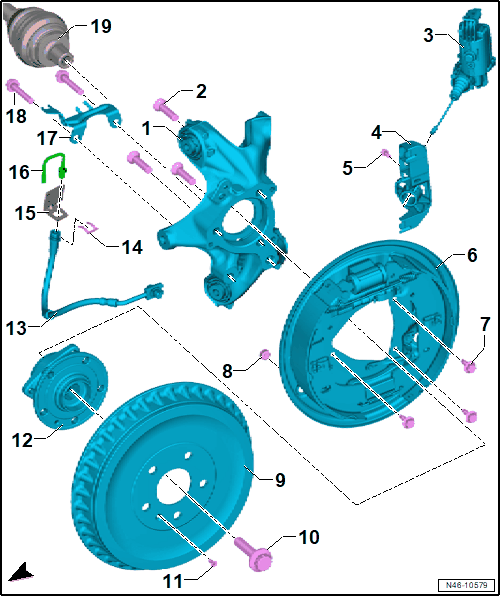

Fig 1: Exploded View Of Rear Brakes (Drum Brakes)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Bearing Housing
- Refer to OVERVIEW - WHEEL BEARING .
Internal Multi-Point Bolt
- Refer to OVERVIEW - WHEEL BEARING .
Left Parking Brake Motor -V282- / Right Parking Brake Motor -V283-
- Refer to Left and Right Parking Brake Motor V282/V283, Removing and Installing .
Parking Brake Motor Bracket
Bolt
- 8 Nm
Brake Carrier with Brake Shoes
Internal Multi-Point Bolt
- 20 Nm
Plugs
Brake Drum
- Wear limit. Refer to Technical Data, Brakes .
Bolt
- Refer to OVERVIEW - WHEEL BEARING .
Torx Bolt
- 8 Nm
Wheel Bearing Unit
- Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
Brake Hose with Ring Connection and Banjo Bolt
- Banjo bolt at the brake cylinder: 45 Nm
- Make sure it is in the installation position
Clip
Bracket
Brake Line
- 14 Nm
Bracket
Internal Multi-Point Bolt
- 50 Nm + 180°
- Replace after removing
Drive Axle
- Refer to DRIVE AXLE, REMOVING AND INSTALLING .
