Rear Axle, Removing And Installing: Removing
-- Loosen the drive axle threaded connection. Refer to Drive Axle Threaded Connection, Loosening and Tightening .
-- Remove the rear wheels. Refer to Wheel, Removing .
-- Remove the motor. Refer to REAR MOTOR, REMOVING .
-- Remove the springs. Refer to Spring, Removing and Installing .
-- Remove the rear wheel housing liners. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Disconnect the connector -2- from the Left Parking Brake Motor -V282- and form the Right Parking Brake Motor -V283- -1-.
Vehicles with adaptive ride control
-- Disconnect the connector -3- from the Left Rear Damping Adjustment Valve -N338- and from the Right Rear Damping Adjustment Valve -N339-.
-- Detach the wire from the bracket at the shock absorber -2- on both sides of the vehicle -arrow-.
Continuation for all vehicles

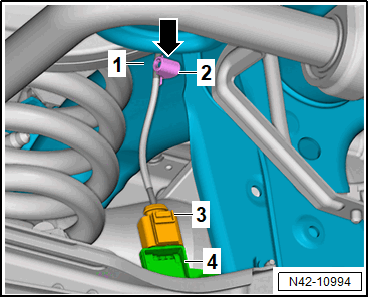

-- Detach the wire -3- from the Left Rear Level Control System Sensor -G76- -4-.
-- Detach the wire -2- from the rear axle -1- -arrow-.
-- Detach the wire -4- from the bracket -2-.
-- Unclip the bracket -1- for the wire -2- at the lower control arm -3-.
-- Press together the bracket locking tabs -1- on the inside of the lower control arm -3-.
-- Detach the wire -3- from the bracket -4- on both sides of the vehicle.
-- Unclip the wire -3- from the rear axle -1- on both sides of the vehicle -2-.
-- Disconnect the connector -2- from the Left Rear ABS Wheel Speed Sensor -G46- and from the Right Rear ABS Wheel Speed Sensor -G44- -3-.

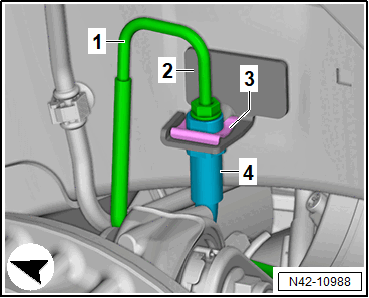

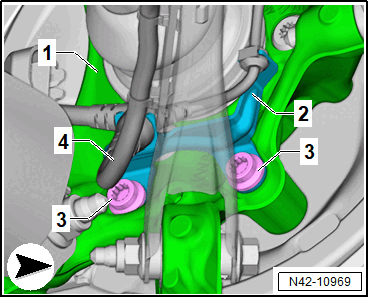

-- Remove the retainer -3- from the brake hose -4- on both sides of the vehicle.
-- Remove the brake line -1- on both sides of the vehicle.
-- Remove the brake hose -4- out of the bracket -2- on both sides of the vehicle.

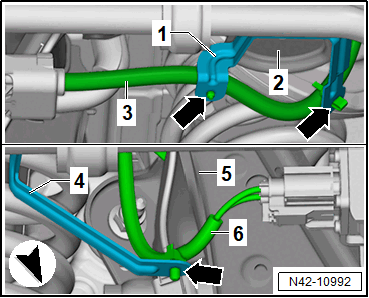

-- Unclip the wire -3- from the bracket -1- on the right side of the vehicle -arrows-.
-- Unclip the wire -6- from the bracket -4- on the left side of the vehicle -arrow-.
For clarity, the rear axle is shown from above in the illustration.

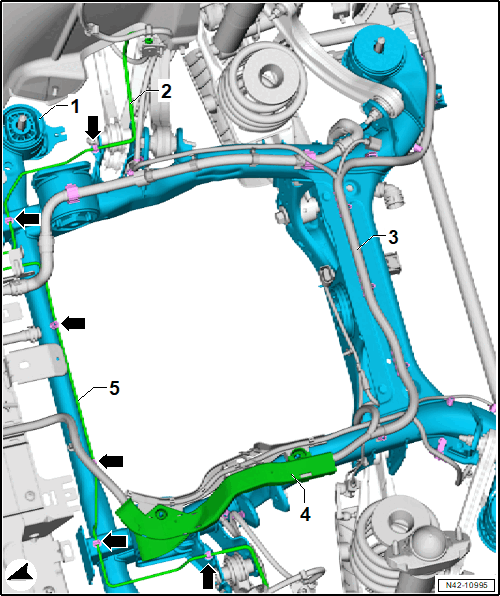

-- Completely loosen the wire -3- on the rear axle -1- and free it up.
-- Unclip the brake lines -5- on the rear axle -1- from the brackets -arrows-.
-- Remove the cable guide -4- on the rear axle -1- upward.
-- Secure the wire and the brake lines on the vehicle with suitable service equipment.
-- Refer to Subframe, Securing .

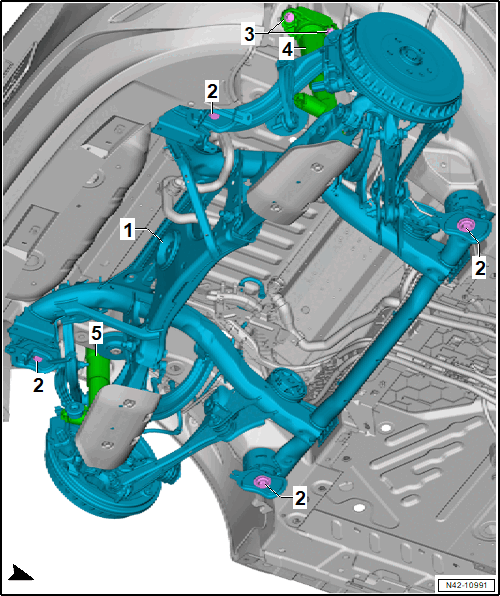

-- Remove the bolts -3- for the shock absorber -4- and -5-.
-- Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE .
Risk of damaging the wires due to the tight working conditions.
- When lowering, ensure the brake lines and wires have sufficient clearance.
-- Lower the subframe with the attachments using the Scissor Lift Table: VAS 6131B .
-- Secure the subframe to the Scissor Lift Table: VAS 6131B using the Tensioning Strap: T10038 .
-- Further lower the subframe with the attachments using the Scissor Lift Table: VAS 6131B .
