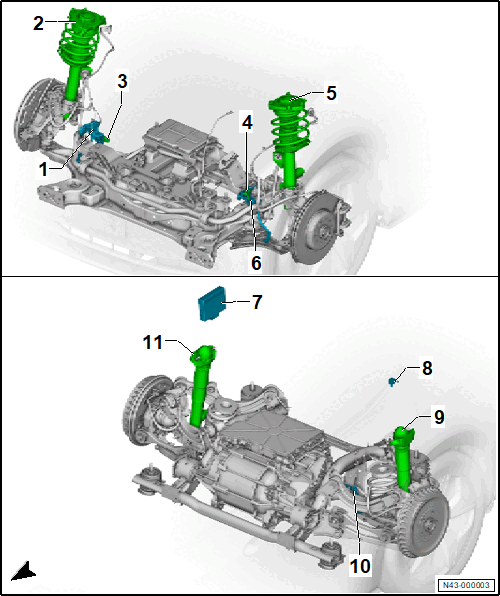

Component Location Overview - Controlled Damping

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front Body Acceleration Sensor -G342-
- Refer to Overview - Controlled Damping .
- Refer to Left and Right Front Body Acceleration Sensor G341/G342, Removing and Installing .
Shock Absorber with Right Front Damping Adjustment Valve -N337-
- Refer to Overview - Shock Absorber .
- Refer to Shock Absorber, Removing and Installing .
Right Front Level Control Sensor -G289-
- Refer to Overview - Front Level Control System Sensor .
- Refer to Left and Right Front Level Control System Sensor G78/G289, Removing and Installing .
Left Front Body Acceleration Sensor -G341-
- Refer to Overview - Controlled Damping .
- Refer to Left and Right Front Body Acceleration Sensor G341/G342, Removing and Installing .
Shock Absorber with Left Front Damping Adjustment Valve -N336-
- Refer to Overview - Shock Absorber .
- Refer to Shock Absorber, Removing and Installing .
Left Front Level Control System Sensor -G78-
- Refer to Overview - Front Level Control System Sensor .
- Refer to Left and Right Front Level Control System Sensor G78/G289, Removing and Installing .
Electronic Damping Control Module -J250-
- Refer to ELECTRONIC DAMPING CONTROL MODULE -J250-, REMOVING AND INSTALLING .
Rear Body Acceleration Sensor -G343-
- Refer to Overview - Controlled Damping .
- Refer to Rear Body Acceleration Sensor G343, Removing and Installing .
Shock Absorber with Left Rear Damping Adjustment Valve -N338-
- Refer to Overview - Shock Absorber .
- Refer to Shock Absorber, Removing and Installing .
Left Rear Level Control System Sensor -G76-
- Refer to Overview - Rear Level Control System Sensor .
- Refer to Left and Right Rear Level Control System Sensor G76/G77, Removing and Installing .
Shock Absorber with Right Rear Damping Adjustment Valve -N339-
- Refer to Overview - Shock Absorber .
- Refer to Shock Absorber, Removing and Installing .
