Overview - Controlled Damping

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

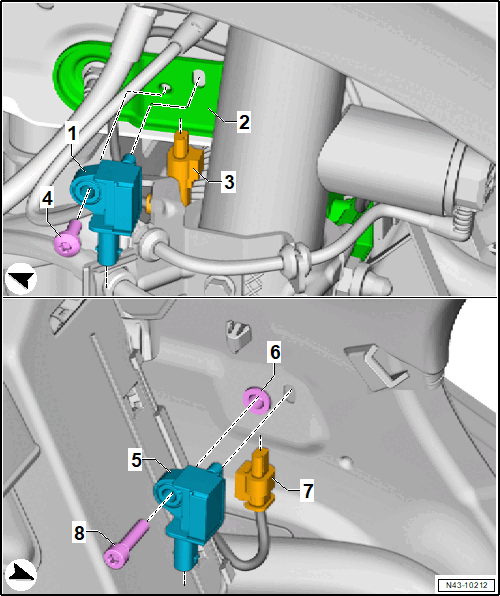

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Body Acceleration Sensor -G341- / Right Front Body Acceleration Sensor -G342-
- Refer to Left and Right Front Body Acceleration Sensor G341/G342, Removing and Installing .
Bracket
Connector
Bolt
- M 6 x 16
- 8 Nm
-- Rear Body Acceleration Sensor -G343-
- Refer to Rear Body Acceleration Sensor G343, Removing and Installing .
Rivet Nuts
Connector
Bolt
- M 6 x 25
- 8 Nm
