Overview - Shock Absorber

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

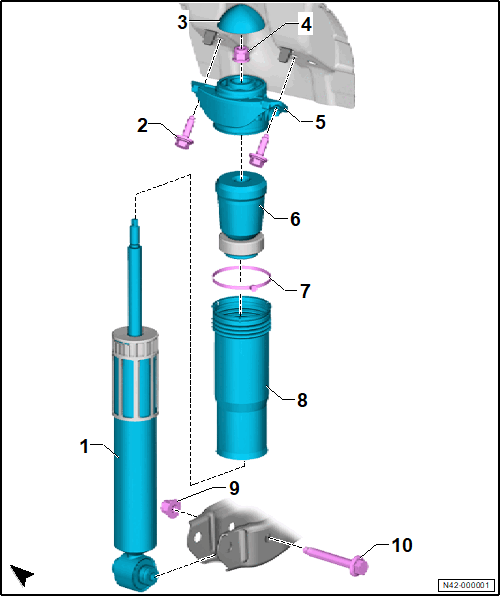

Fig 1: Exploded View Of Shock Absorber

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Shock Absorber
- Refer to Shock Absorber, Removing and Installing .
Bolt
- Quantity: 2
- Replace after removing
- M 10 x 35
- 50 Nm + 90°
Cover
Nut
- Replace after removing
- M 10
- 25 Nm
Shock Absorber Mount
Stop Buffer
Cable Tie
- Replace after removing
Protective Pipe
Nut
- Replace after removing
- M 12 x 1.5
- 70 Nm +180°
Bolt
- Replace after removing
- M 12 x 1.5 x 90
