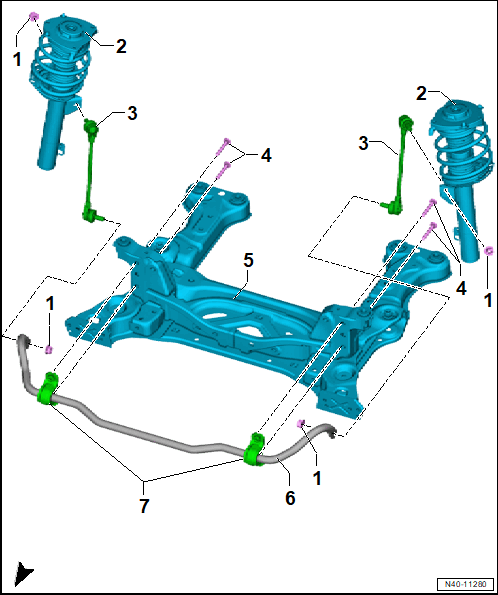

Overview - Stabilizer Bar
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- M 14 x 1.5
- 160 Nm
- Suspension Strut
- Refer to Overview - Suspension Strut .
- Refer to Suspension Strut, Removing and Installing .
- Coupling Rod
- Refer to Coupling Rod, Removing and Installing .
- Bolt
- Quantity: 4
- Replace after removing
- M 10 x 75
- 20 Nm +180°
- Subframe
- Refer to Overview - Subframe .
- Refer to Subframe with Steering Gear, Removing and Installing .
- Refer to SUBFRAME, SECURING .
- Stabilizer Bar
- Refer to Stabilizer Bar, Removing and Installing .
- Bonded Rubber Bushing
- Component of the stabilizer bar
