SUBFRAME, Securing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1

CAUTION:

If the subframe is removed, the settings on the axle can be changed.

The driving behavior of the vehicle can be influenced by this.

- Secure the exact position of the subframe with the help of four threaded pins.

-- Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE .

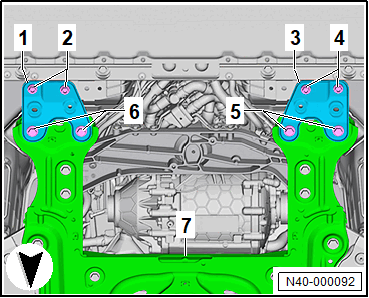

-- Remove the bolts -4-.

GWWN40-000092

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -5-.

-- Remove the support plate -3-.

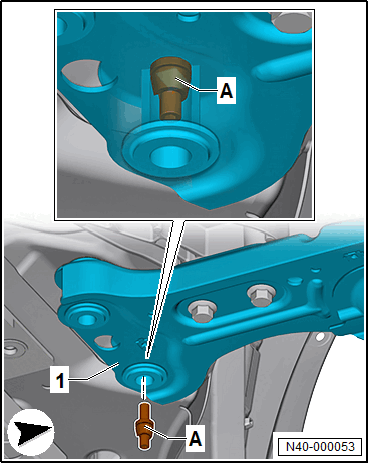

-- Install the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- in the outer hole on the left side of the vehicle from the subframe -1-.

GWWN40-000053

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- to 20 Nm.

-- Remove the bolts -2-.

GWWN40-000092

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -6-.

-- Remove the support plate -1-.

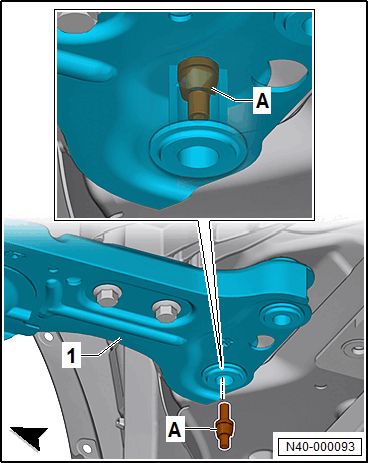

-- Install the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- in the outer hole on the right side of the vehicle from the subframe -1-.

GWWN40-000093

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- to 20 Nm.

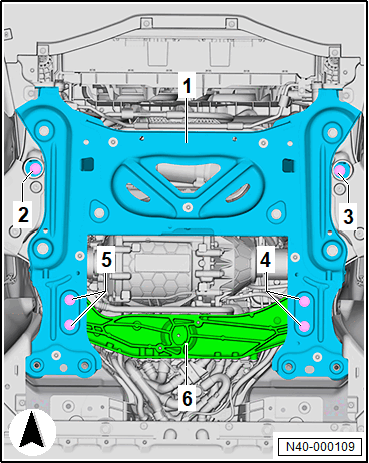

-- Remove the bolt -2- on the left side of the vehicle.

GWWN40-000109

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

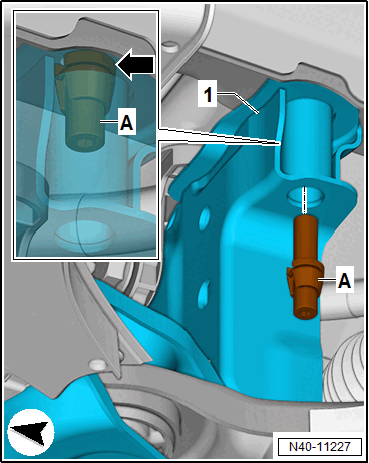

-- Insert the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- and tighten to 20 Nm.

GWWN40-11227

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3- on the right side of the vehicle.

GWWN40-000109

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

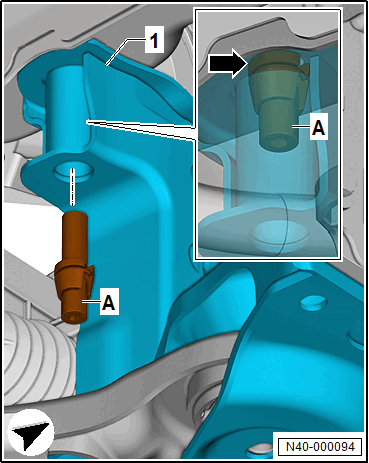

-- Insert the Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 -A- and tighten to 20 Nm.

GWWN40-000094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in the reverse order of removal while noting the following:

-- Always only remove one Subframe Alignment Assembly Tool Kit- Locating Pins: T10486/1 and replace it with a new bolt.

If the steering wheel is still crooked when performing the road test, then an axle alignment is necessary.

Continuation

Tightening Specifications

Refer to Overview - Subframe .
Refer to OVERVIEW - UNDER BODY TRIM PANELS, 55, 62 KWH , OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH or OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH GTX .
