Overview - Suspension Strut

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

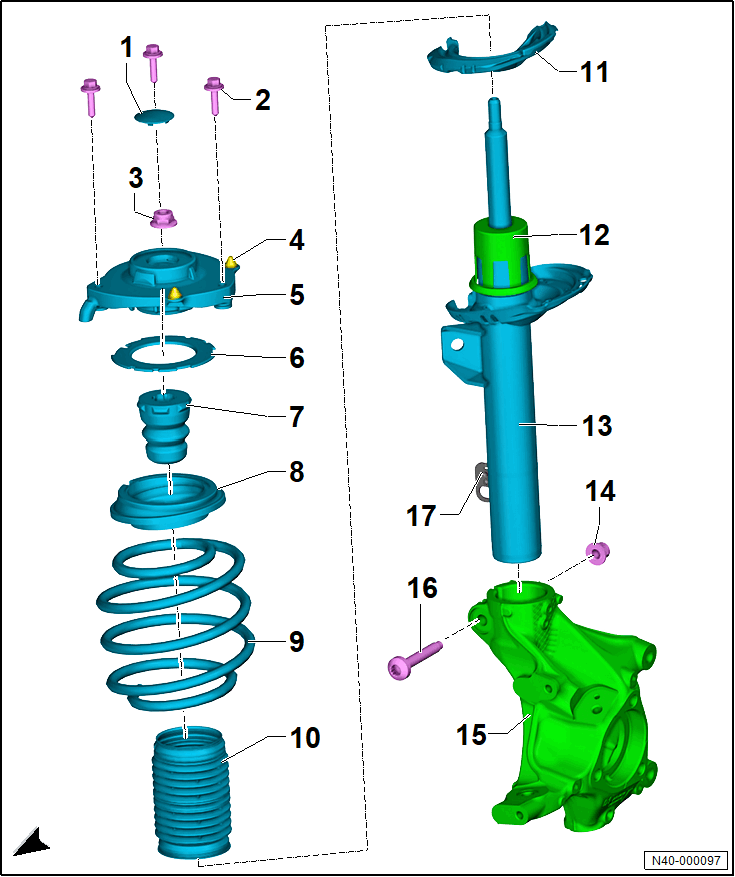

Fig 1: Exploded View Of Suspension Strut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cover
Bolt
- Quantity: 3
- Replace after removing
- M 8 x 35
- 20 Nm +90°
Nut
- Replace after removing
- 60 Nm
Guide
Strut Mount
Washer
Stop Buffer
- Depending on equipment/version
- Allocation. Refer to the Parts Information.
Deep-Groove Ball Bearing
Spring
- Depending on equipment/version
- Allocation. Refer to the Parts Information.
- Refer to Spring, Removing and Installing .
Protective Cover
Spring Support
Protective Cover
Shock Absorber
- Depending on equipment/version
- Allocation. Refer to the Parts Information.
- Refer to Suspension Strut, Removing and Installing .
Nut
- Replace after removing
- M 12 x 1.5
Wheel Bearing Housing
- Depending on equipment/version
- Allocation. Refer to the Parts Information.
- Refer to Overview - Wheel Bearing AWD or Overview - Wheel Bearing RWD .
Bolt
- Replace after removing
- M 12 x 1.5 x 80
- 70 Nm + 180°
Guide
