Headlamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the burglary protection control module bracket. Refer to OVERVIEW - BURGLARY PROTECTION CONTROL MODULE .

For the driver side headlamp

-- Remove the release cable coupling from the headlamp. Refer to OVERVIEW - RELEASE CABLE .

Continuation for all vehicles

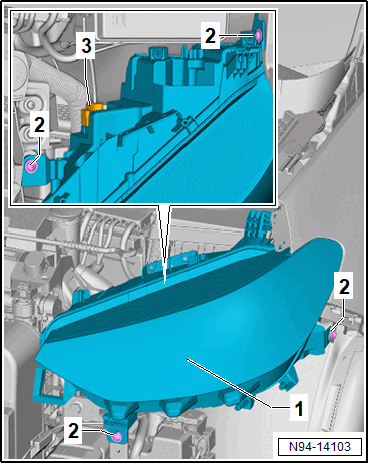

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.

-- Remove the headlamp -1-.
