Overview - Burglary Protection Control Module

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

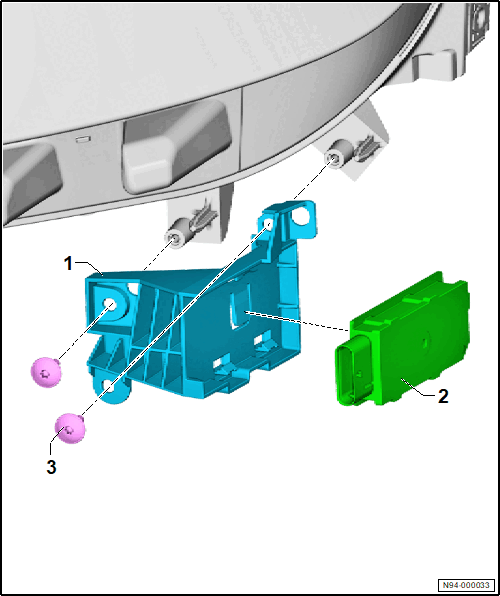

Fig 1: Exploded View Of Burglary Protection Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket for the Burglary Protection Control Module 2 -J1192- / Burglary Protection Control Module 3 -J1193-
Burglary Protection Control Module 2 -J1192- / Burglary Protection Control Module 3 -J1193-
- Refer to Burglary Protection Control Module 2 -J1192- / Burglary Protection Control Module 3 -J1193-, REMOVING AND INSTALLING
Bolt
- 2 Nm
- Quantity: 2
