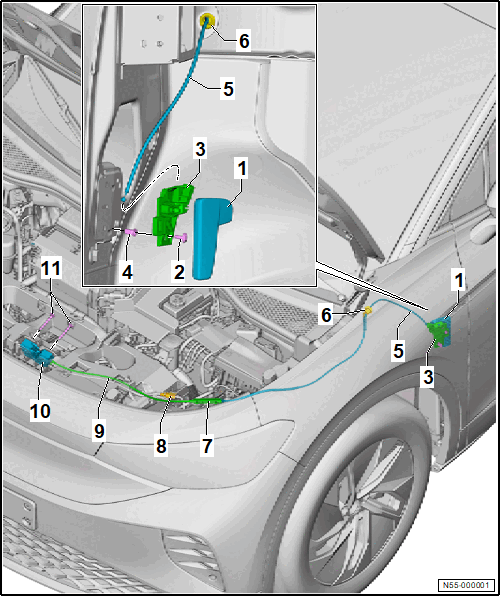

Overview - Release Cable

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Operating Lever for Hood Latch
- Refer to Hood Latch Operating Lever, Removing and Installing .
Bolt
- 2 Nm
Mounting Bracket
Expanding Nut
Release Cable
- From the mounting bracket -3- to the release cable coupling -7-
- Refer to Release Cable, Removing and Installing .
Grommet
Release Cable Coupling
Connector for the Engine Hood Contact Switch -F266-
Release Cable
- From the release cable coupling -7- to the hood latch -10-
- Refer to Release Cable, Removing and Installing .
Hood Latch
- With Engine Hood Contact Switch -F266-
- Refer to Hood Latch, Removing and Installing .
Bolt
- Quantity: 2
- 12 Nm
