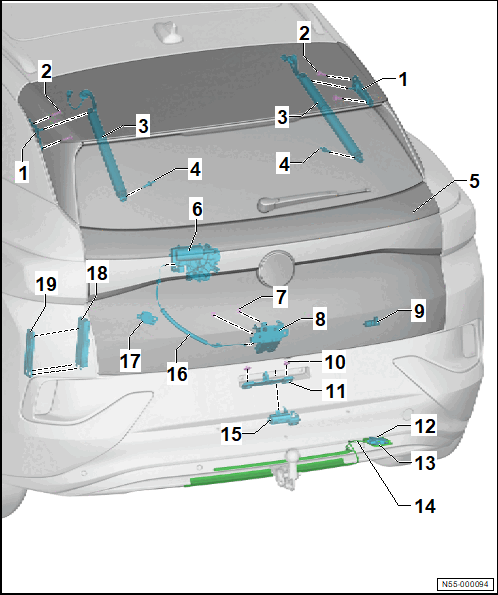

Overview - Electric Rear Lid Release

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Mounting Bracket
Bolt
- Quantity: 4
- Replace after removing
- 20 Nm + 90°
Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-
- Left Rear Lid Motor 1 -V444- with Sensor in Rear Lid Motor 1 -G745-
- Right Rear Lid Motor 2 -V445- with Sensor in Rear Lid Motor 2 -G746-
- Refer to REAR LID DRIVE UNITS VX69/VX77, REMOVING AND INSTALLING .
- Refer to REAR LID DRIVE UNIT -VX69- / REAR LID DRIVE UNIT 2 -VX77-, PREPARING FOR DISPOSAL .
Ball Pin
- Quantity: 2
- Replace after removing
- Refer to Ball Pin, Removing and Installing .
- 20 Nm + 90°
Rear Lid
- Refer to Rear Lid, Removing and Installing .
- Refer to Rear Lid, Adjusting .
Rear Lid Closing Aid -VX16-
- With a Rear Lid Closing Assist Motor -V382-
- With Rear Lid Closing Aid/Lock Stop Switch -F333-
- Refer to Rear Lid Closing Aid VX16, Removing and Installing .
Nut
- Quantity: 2
- 20 Nm
Rear Lid Lock Unit -VX25-
- Depending on the equipment/version
- With Rear Lid Contact Switch -F111-
- With Luggage Compartment Lamp Switch - F5-
- With Central Locking Lock Module in Rear Lid -F327-
- Refer to Rear Lid Lock Unit VX25 with Closing Assist, Removing and Installing .
Rear Lid Closing Button -E574-
- Refer to the appropriate Service Information .
Nut
- Quantity: 2
- 20 Nm
Striker
- Refer to Striker, Removing and Installing .
- Refer to Striker, Adjusting .
Power Rear Lid Opening Control Module -J938-
- Refer to Rear Lid Opener Control Module J938, Removing and Installing .
Bracket for Power Rear Lid Opening Control Module -J938-
- Replace after removing
- Refer to POWER REAR LID OPENING CONTROL MODULE BRACKET J938, REMOVING AND INSTALLING
Power Rear Lid Opening Sensor -G750-, Power Rear Lid Opening Sensor 2 -G760-
- Replace after removing
- Refer to POWER REAR LID OPENING SENSORS G750/G760, REMOVING AND INSTALLING .
Rear Lid Handle -EX37-
- With Release Button in Rear Lid Handle -E234-
- Refer to REAR LID HANDLE, REMOVING AND INSTALLING .
Release Cable
- For Rear Lid Closing Aid -VX16-
Rear Lid Warning Buzzer -H32-
- Refer to REAR LID WARNING BUZZER H32, REMOVING AND INSTALLING .
Rear Lid Control Module -J605-
- Refer to Rear Lid Control Module J605, Removing and Installing .
Bracket for the Rear Lid Control Module -J605-
- Refer to Bracket for Rear Lid Control Module J605, Removing and Installing .
