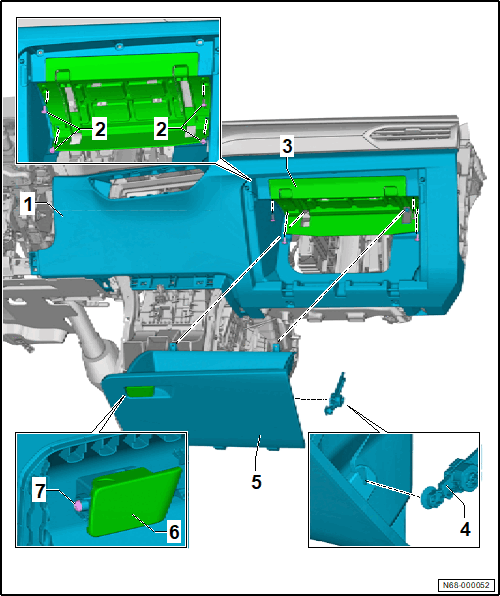

Overview - Glove Compartment

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Side Instrument Panel Cover
   • Refer to Overview - Instrument Panel Cover, Front Passenger Side  .
   • Refer to Front Passenger Side Instrument Panel Cover, Removing and Installing  .
2. Bolt
   • Quantity: 4
   • 1.5 Nm
3. Glove Compartment Lid
   • Refer to Glove Compartment Lid, Removing and Installing  .
4. Glove Compartment Damping Element
   • Refer to Glove Compartment Damping Element, Removing and Installing  .
5. Glove Compartment
   • Refer to Glove Compartment, Removing and Installing  .
   • Refer to Glove Compartment Service Position  .
6. Glove Compartment Handle
   • Refer to Glove Compartment Handle, Removing and Installing  .
7. Bolt
   • 1.5 Nm
