Glove Compartment Service Position

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Moving into Service Position

-- Open the glove compartment -2-.

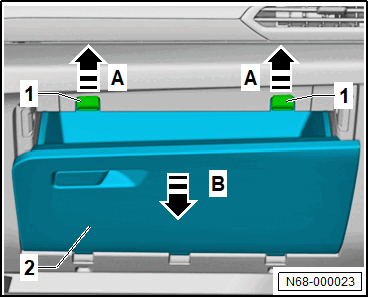

GWWN68-000023Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the stops -1- in the -direction of arrow A- and fold the glove compartment -2- all the way up in the -direction of arrow B-.

-- Unclip the push rod from the side brake element at the glove compartment.

Service Position, Resetting

-- Slowly close the glove compartment until it audibly latches.
