Front Passenger Side Instrument Panel Cover, Removing And Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The removing and installing is described as an example for a LHD vehicle.

-- Remove the instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

-- Remove the glove compartment lid. Refer to Glove Compartment Lid, Removing and Installing .

-- Remove the instrument panel decorative trim on the front passenger side. Refer to Instrument Panel Decorative Trim, Removing and Installing .

-- Remove the center vent. Refer to Center Vent, Removing and Installing .

-- Remove the driver side instrument panel cover. Refer to Driver Side Instrument Panel Cover, Removing and Installing .

-- Remove the tunnel support cover. Refer to Tunnel Support Cover, Removing and Installing .

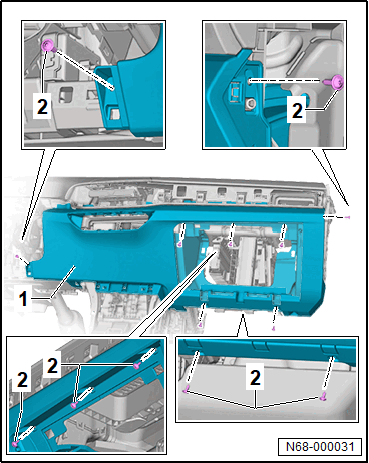

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front passenger side instrument panel cover -1-.

-- Disconnect the connectors.

Installing

Install in the reverse order of removal while noting the following:

Tightening Specifications

Refer to Overview - Instrument Panel Cover, Front Passenger Side .
