Clutch Fluid Level, Checking

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

(Housing lettering CLUTCH OIL)

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:VAS 6622A

Fig 1: Identifying Used Oil Collection And Extraction Unit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1410:V.A.G 1410

Fig 2: Identifying Torque Wrench 1410 VAG1410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Vehicle Diagnostic Tester

Test Requirements

The oil temperature must be 20 to 40 °C (68 to 104 °F).
The oil temperature can be reached by driving the vehicle for a while.
The vehicle must be level.
Final drive must be in the installation position to check oil level.

-- Read the oil temperature using the Vehicle Diagnostic Tester in Guided Functions .

The oil temperature must be 20 to 40 °C (68 to 104 °F).

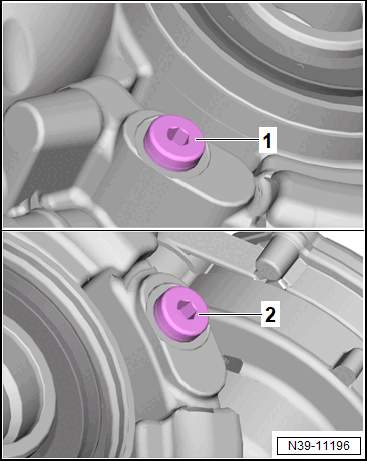

Checking oil level, right

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the clutch chamber.

-- Remove the bolt -1-.

The level is correct when the fluid comes up to the bottom edge of the filler hole.

-- If necessary, fill the oil. Refer to Oil, Filling .

-- Install the bolt -1- and tighten to the tightening specification.

Checking oil level, left

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the clutch chamber.

-- Remove the bolt -2-.

The level is correct when the fluid comes up to the bottom edge of the filler hole.

-- If necessary, fill the oil. Refer to Oil, Filling .

-- Install the bolt -2- and tighten to the tightening specification.

Tightening Specifications

Refer to OVERVIEW - DRAIN AND CHECK PLUGS
Refer to OVERVIEW - SEALS
