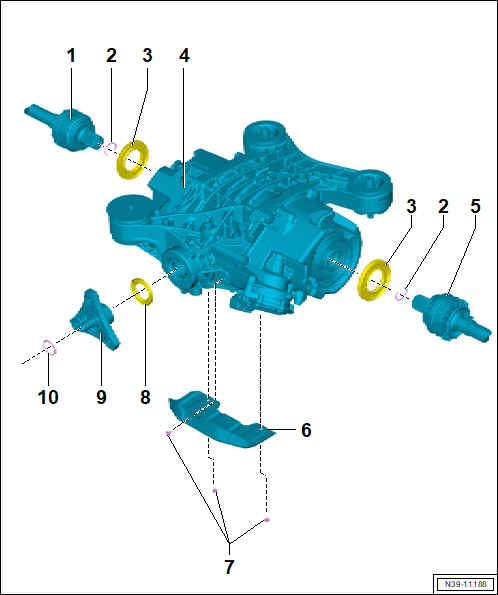

Overview - Seals
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Drive Axle
- Right
- Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
- Circlips
- Quantity: 2
- Replace after removing
- Seals
- Quantity: 2
- Replace after removing
- Removing and Installing. Refer to RIGHT SEAL, REPLACING .
- Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Drive Axle
- Left
- Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
- Guard Plate
- Bolts
- Quantity: 3
- 8 Nm
- Seal
- Removing and Installing. Refer to DRIVESHAFT FLANGE SEAL, REMOVING AND INSTALLING .
- Flange
- Removing and Installing. Refer to DRIVESHAFT FLANGE SEAL, REMOVING AND INSTALLING .
- Circlip
- Replace after removing
