Overview - Drive Axle: Overview
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

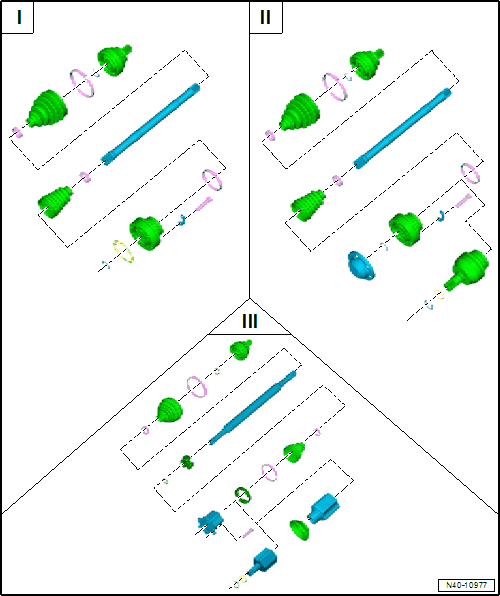

- I - Refer to OVERVIEW - DRIVE AXLE, CV JOINT VL 100
- II - Refer to OVERVIEW - DRIVE AXLE, CV JOINT VL 107
- III - Refer to OVERVIEW - DRIVE AXLE, TRIPLE ROLLER JOINT AAR 3300I
Drive Axles, Differentiating when Installed
| VL 100 | VL 107 | AAR 3300i attached | AAR 3300i bolted | |
|---|---|---|---|---|
| Diameter of inner joint in mm | 100 | 107 | - | - |
| Cover between inner joint and flange shaft | - | X | - | - |
| Inner joint inserted into transmission (automatic transmission only) | - | - | X | - |
| Inner joint attached to flange shaft (AWD only) | - | - | X | - |
