Oil Pump, Removing And Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 6-50Nm:VAG 1331A

Fig 1: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

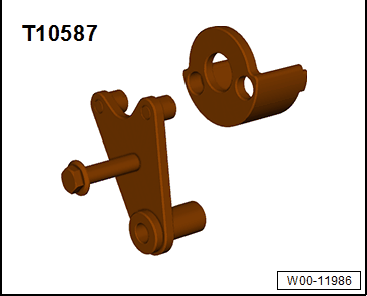

Counterhold:T10587

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Procedure:

-- Remove the transmission. Refer to TRANSMISSION, REMOVING .

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the transmission side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .

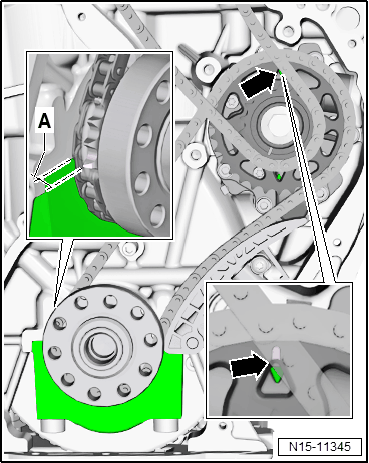

-- Turn the engine on the vibration damper to the adjusting markings.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The milled drive chain sprocket tooth -A- must align with the bearing joint.
The marking on the chain sprocket -arrow- must align with the marking on the oil pump.

NOTE:

This position is only reached at every fourth turn.

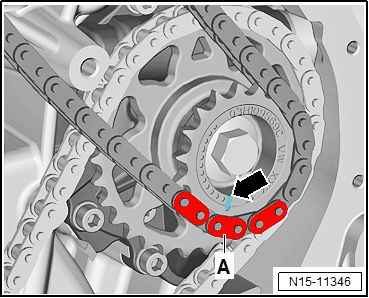

-- Mark the position of the timing chain -A- to the oil pump chain sprocket -arrow- with a waterproof marker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

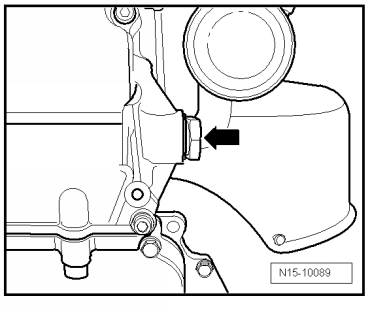

-- Remove the chain tensioner for the camshaft timing chain -arrow-.

Fig 2: Chain Tensioner Bolt Camshaft Roller Chain

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

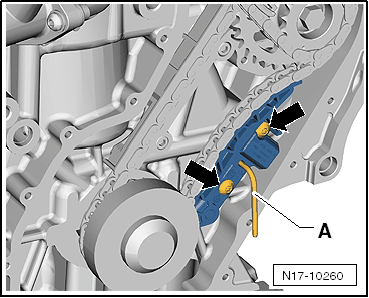

-- Press the chain tensioner together and disconnect with a 3 mm hex socket wrench -A-.

Fig 3: Hex Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tensioner for the oil pump drive chain -arrows-.

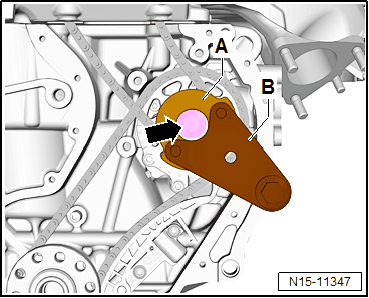

-- Position the Counterhold:T10587/1 -(A)- with :T10587/2 -(B)- as shown on the oil pump chain sprocket and on the cylinder block.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the chain sprocket bolt -arrow-.

-- Remove the Counterhold:T10587 .

-- Remove the bolt all the way and remove the chain sprocket from the oil pump.

-- Remove the chains from the chain sprocket.

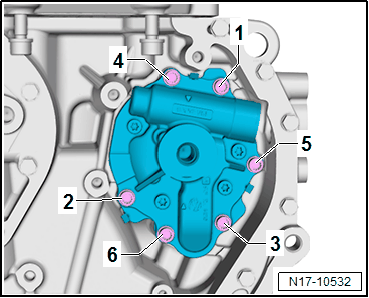

-- Remove the bolts for the oil pump -1 to 6-.

Fig 4: Oil Pump Bolts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

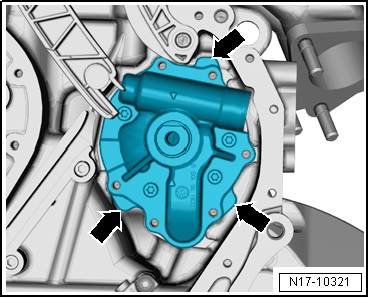

-- Remove the oil pump evenly from the tabs -arrows-.

Fig 5: Identifying Oil Pump Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing:

Fig 6: Oil Pump Bolts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the O-ring for the oil pump.

-- Install the oil pump without tilting!

-- Use locking fluid when installing the oil pump bolts.

-- Tighten the bolts in the following sequence: -1 through 6-. Tightening specification. Refer to OVERVIEW - OIL PAN/OIL PUMP.

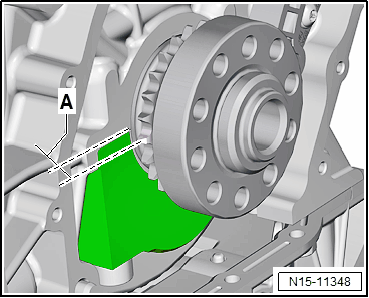

-- Check the crankshaft position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The milled drive chain sprocket tooth -A- must align with the bearing joint.

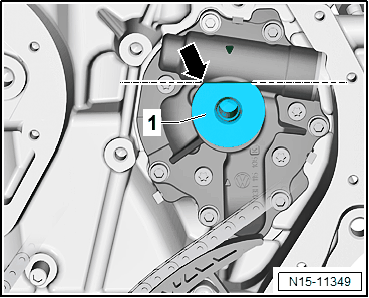

-- Turn the oil pump shaft -1- upward with the flat side -arrow- horizontal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

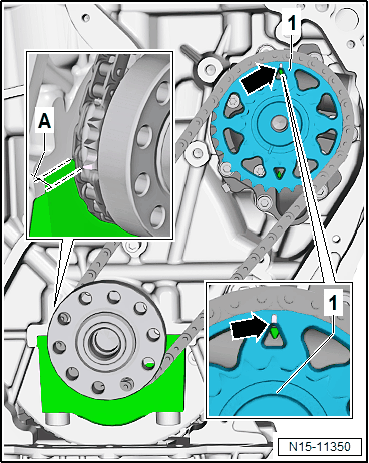

-- Insert the large chain sprocket -1- into the drive chain so that the marking -arrow- is aligned with the marking on the oil pump.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the chain sprocket cannot be installed, rotate the oil pump shaft slightly.

-- Carefully remove the chain sprocket from the oil pump and tilt it slightly upward. Install the camshaft timing chain in this position. The markings made during removal must align.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Reinstall the chain sprocket on the oil pump shaft and tighten by hand.

-- Install the lower chain tensioner and tighten with 8 Nm -arrows-.

Fig 7: Hex Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hex socket wrench -A-.

-- Install the chain tensioner for camshaft timing chain -arrow-.

Fig 8: Chain Tensioner Bolt Camshaft Roller Chain

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the markings one more time.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The milled drive chain sprocket tooth -A- must align with the bearing joint.
The marked hole -arrow- must be aligned with the marking on the oil pump.
The markings made during removal must align.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Counterhold:T10587 on the chain sprocket as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the chain sprocket bolt -arrow-. Tightening specification. Refer to OVERVIEW - OIL PAN/OIL PUMP.

-- Remove the Counterhold:T10587 .

-- Install the sealing flange on the transmission side. Refer to Installing: .

Further assembly is performed in reverse order.

Tightening Specifications:

Refer to OVERVIEW - OIL PAN/OIL PUMP
