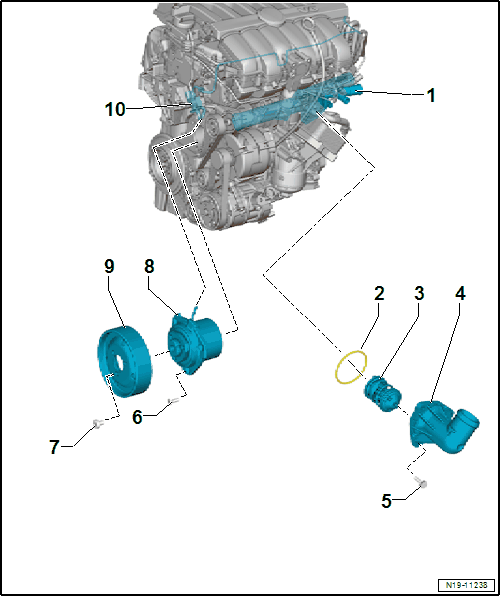

Overview - Coolant Pump/Coolant Thermostat
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Pipe
- O-Ring
- Replace
- Coolant Thermostat
- Starts to open 80 °C (176 °F)
- Removing and Installing. Refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING .
- Connection
- 5 Nm
- 8 Nm
- 20 Nm
- Coolant Pump
- Check the membrane in the coolant pump for leaks using the Hand Vacuum Pump:VAS 6213
- Replace the coolant pump gaskets after disassembly.
- Removing and Installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Belt Pulley
- For the coolant pump
- Removing and Installing (refer to COOLANT PUMP, REMOVING AND INSTALLING ), Coolant Pump, Removing and Installing.
- Coolant Regulation Valve -N515-
