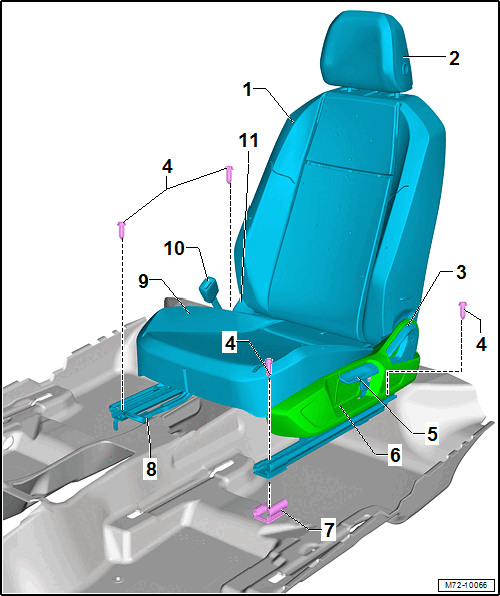

Overview - Front Seat, Manual

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Backrest
   • Refer to Overview - Front Backrest  .
   • Refer to Front Backrest, Removing and Installing  .
2. Headrest
   • Refer to Overview - Headrest  .
   • Refer to Headrest, Removing and Installing  .
3. Backrest Adjustment Wheel Handle
   • Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING  .
4. Bolt
   • 40 Nm
   • Quantity: 4
5. Seat Height Adjustment Handle
   • Refer to Seat Height Adjustment Handle, Removing and Installing  .
6. Outer Side Trim Panel
   • Refer to Outer Seat Trim Panel, Removing and Installing  .
7. Seat Rail Cover
   • Quantity: 4
8. Seat Forward/Back Adjustment Handle
9. Seat Pan
   • Refer to Overview - Seat Pan  .
10. Front Seat Belt Latch
    • Refer to Overview - Front Seat Belt Latch .
    • Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
11. Inner Seat Trim Panel
    • Refer to Inner Seat Trim Panel, Removing and Installing  .
