Sensor Wheel Installation Position on Crankshaft, Checking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

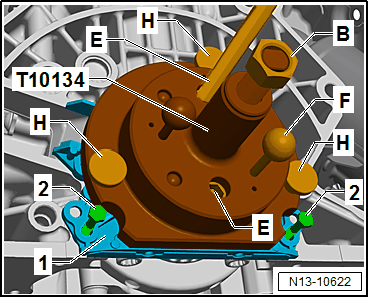

-- Install the nut -B- up to the end of the threaded spindle.

-- Remove both bolts -2- from the cylinder block.

-- Remove the gasoline engine guide pins (red handle) -F- from the crankshaft flange.

-- Remove the knurled bolts -H- from the sealing flange -1-.

-- Remove the hex socket bolts -E- from the crankshaft flange and remove the : T10134 from the crankshaft flange.

-- Remove the sealing lip support ring.

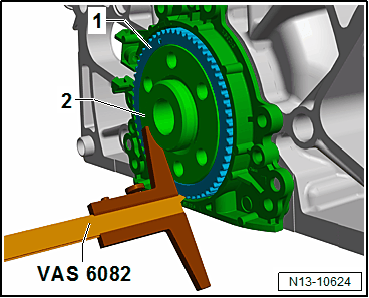

-- Attach the : VAS6082 to the crankshaft flange -2-.

Fig 1: Identifying Depth Gauge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

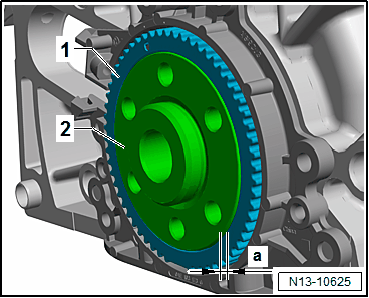

-- Measure the distance -a- between the crankshaft flange -2- and the sensor wheel -1-.

Fig 2: Identifying Distance Between Crankshaft Flange And Sensor Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the sensor wheel again if the specified value is too small. Refer to Sensor Wheel, Pressing On .

-- When the specified value is reached, perform the rest of the assembly. Refer to Assembling .
