Component Location Overview - Airbag System

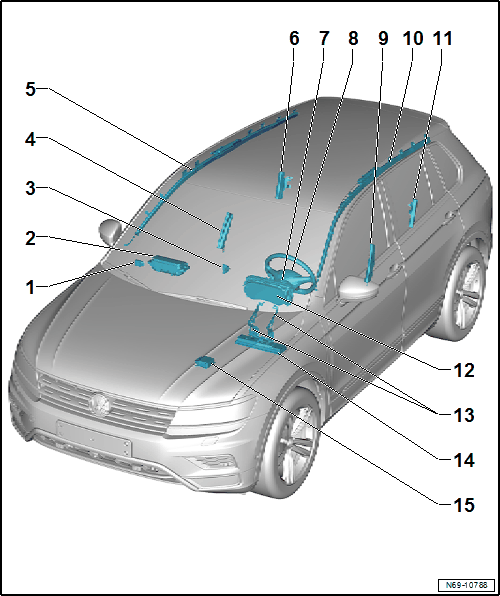

Fig 1: Component Location Overview Of Airbag System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Airbag Deactivation Key Switch -E224-
   • Not for North American market.
2. Front Passenger Airbag
   • With Front Passenger Airbag Igniter 1 -N131-
   • Deactivating and activating possible with Front Passenger Airbag Deactivation Key Switch -E224-.
   • Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Cannot be replaced separately
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
4. Front Passenger Front Thorax Airbag
   • With Front Passenger Thorax Airbag Igniter -N200-
   • Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
5. Front Passenger Head Curtain Airbag
   • With Front Passenger Head Curtain Airbag Igniter -N252-
   • Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
6. Rear Thorax Airbag on Front Passenger Side
   • With Passenger Side Rear Thorax Airbag Igniter -N202-
   • Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
7. Steering Column Electronics Control Module -J527-
   • With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
   • Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
8. Driver Side Airbag
   • With Driver Airbag Igniter -N95-
   • Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
9. Front Thorax Airbag on Driver Side
   • With Driver Thorax Airbag Igniter -N199-
   • Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
10. Driver Head Curtain Airbag
    • With Driver Head Curtain Airbag Igniter -N251-
    • Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
11. Rear Thorax Airbag on Driver Side
    • With Driver Side Rear Thorax Airbag Igniter -N201-
    • Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
12. Airbag Indicator Lamp -K75-
    • Integrated in the instrument cluster.
    • Cannot be replaced separately
    • Instrument Cluster, Removing and Installing. Refer to OVERVIEW - INSTRUMENT CLUSTER / INSTRUMENT CLUSTER -KX2-, REMOVING AND INSTALLING .
13. Driver Side Knee Airbag Bracket
    • Overview. Refer to OVERVIEW - STEERING COLUMN .
14. Driver Side Knee Airbag
    • With Driver Knee Airbag Igniter -N295-
    • Overview. Refer to OVERVIEW - KNEE AIRBAG .
15. Airbag Control Module -J234-
    • Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
