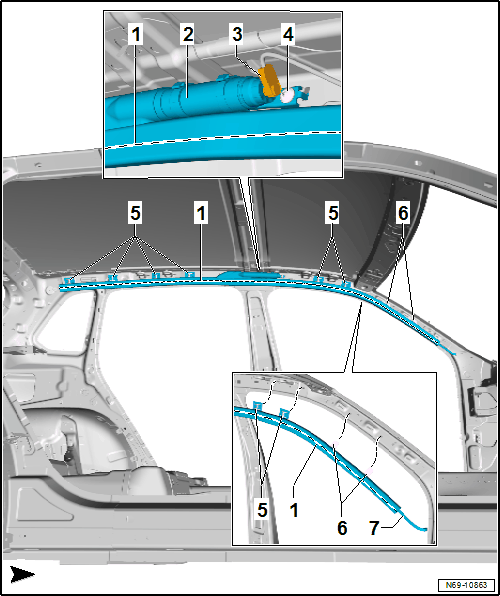

Overview - Head Curtain Airbag
- Anti-Rotation Protection Line
- Serves as anti-twist mechanism
- must be visible after assembly.
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Observe the safety precautions for pyrotechnical components SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Wire
- For the Driver Head Curtain Airbag Igniter -N251- /Front Passenger Head Curtain Airbag Igniter -N252-
- Bolt
- 8 Nm
- Replace after removing.
- Clip
- Quantity: 6
- Clip
- Quantity: 2
- Strap
- Thread the strap into the square hole in the body when installing
- Check by pulling on the strap after engaging it.
