Component Location Overview - Passenger Occupant Detection System, Basic
WARNING: This page is about a different variant/trim than selected.
NOTE:

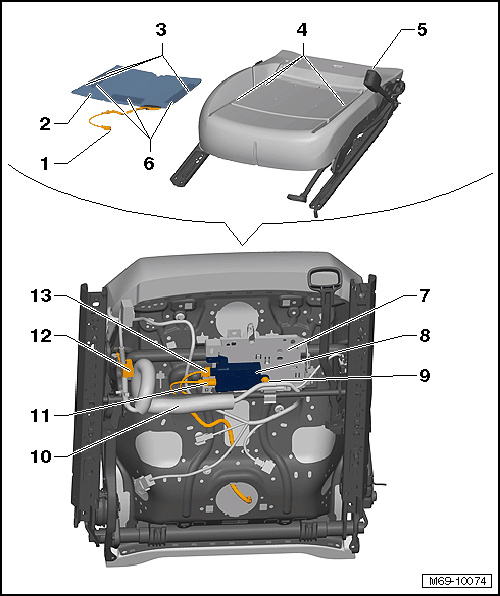

The Passenger Occupant Detection System Pressure Sensor -G452- automatically deactivates the front passenger airbag when the front passenger seat is not occupied.
There are different versions of the front seat ("Basic", "Sport") and different versions of the sensor:
Refer to COMPONENT LOCATION OVERVIEW - PASSENGER OCCUPANT DETECTION SYSTEM, SPORT
- Wiring Harness
- Wiring harness with Passenger Occupant Detection System Pressure Sensor -G452- connector
- Pay attention to the exact wire routing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING AND Passenger Occupant Detection System Pressure Sensor -G452-, BASIC, INSTALLING - Guide the connector -3- for the pressure sensor -2- through the opening in the seat cushion -arrow B-. .
- Passenger Occupant Detection System Pressure Sensor -G452-
- Must not be separated from the front seat cushion cover
- The components are separated from each other; replace both components
- Replace the heating element if the vehicle has seat heating.
- It is not necessary to replace the Passenger Occupant Detection System Control Module -J706-.
- Removing and Installing . Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING AND Passenger Occupant Detection System Pressure Sensor -G452-, BASIC, REMOVING .
- Positioning Aids
- Positioning aids on Passenger Occupant Detection System Pressure Sensor -G452-
- Before applying the glue, make sure the positioning aids line up with the positioning aids on the front seat cushion. Refer to -Item - COMPONENT LOCATION OVERVIEW - PASSENGER OCCUPANT DETECTION SYSTEM, BASIC - List Item:Positioning Aids.
- Positioning Aids
- Positioning aids on the front seat cushion padding
- The positioning aids must line up with the positioning aids on the Passenger Occupant Detection System Pressure Sensor -G452- -Item - COMPONENT LOCATION OVERVIEW - PASSENGER OCCUPANT DETECTION SYSTEM, BASIC - List Item:Positioning Aids before bonding.
- Front Seat Cushion
- Must not be separated from the Passenger Occupant Detection System Pressure Sensor -G452-
- The components are separated from each other; replace both components
- It is not necessary to replace the Passenger Occupant Detection System Control Module -J706-.
- Adhesive Surfaces
- Adhesion surface for gluing to the front seat cushion cover
- Remove the protective film just before applying the glue.
- Bracket
- Passenger Occupant Detection System Control Module -J706- bracket
- Clipped to the seat frame
- Removing and Installing . Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING, PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE BRACKET .
- Passenger Occupant Detection System Control Module -J706-
- Diagnostic-capable
- If the Passenger Occupant Detection System Control Module -J706- must be replaced, it is not necessary to replace the Passenger Occupant Detection System Pressure Sensor -G452-.
- Removing and Installing . Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING, PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE .
- Bolt
- 1.5 Nm
- Bolt for Passenger Occupant Detection System Control Module -J706-
- Front Seat Wiring Harness
- Connector
- Passenger Occupant Detection System Pressure Sensor -G452- connector to Passenger Occupant Detection System Control Module -J706-
- Pay attention to the exact wire routing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING AND Passenger Occupant Detection System Pressure Sensor -G452-, BASIC, REMOVING .
- Connector
- Coupling location of the passenger occupant detection system to the vehicle electrical system
- Connector
- Voltage supply connector for Passenger Occupant Detection System Control Module -J706-
