PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING AND Passenger Occupant Detection System Pressure Sensor -G452-, BASIC, INSTALLING

WARNING: This page is about a different variant/trim than selected.

Installing

NOTE:

Route the Passenger Occupant Detection System Pressure Sensor -G452- so that it has no bends.

After replacing the passenger occupant detection system, passenger classification system basic setting must be performed with the Vehicle Diagnostic Tester, in the "Guided Fault Finding".

If the vehicle has heated seats, make sure the heating element is always installed under the Passenger Occupant Detection System Pressure Sensor -G452-. The pressure sensor will not function correctly otherwise.

WARNING:

The basic setting must be performed with the seat empty.

Fig 1: Identifying Wiring Harness

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the connector -3- for the pressure sensor -2- through the opening in the seat cushion -arrow B-.

-- Secure the wiring harness -1- in the channel -arrow A-.

NOTE:

Make sure that the entire wiring harness -1- is guided through the seat cushion -arrow B-. After the installation there can be no wires inside the channel -arrow A-.

Fig 2: Identifying Pressure Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

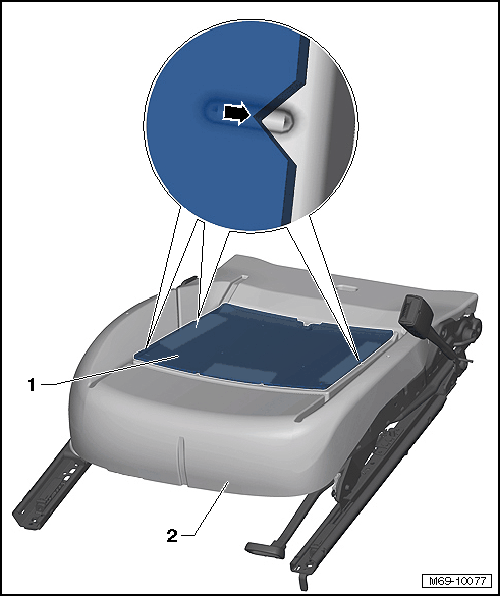

-- Place the Passenger Occupant Detection System Pressure Sensor -G452- -1- on the seat cushion -2-.

-- Position the pressure sensor -1- on the seat cushion -2- so that the positioning aids -arrow- line up with each other.

Fig 3: Identifying Pressure Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

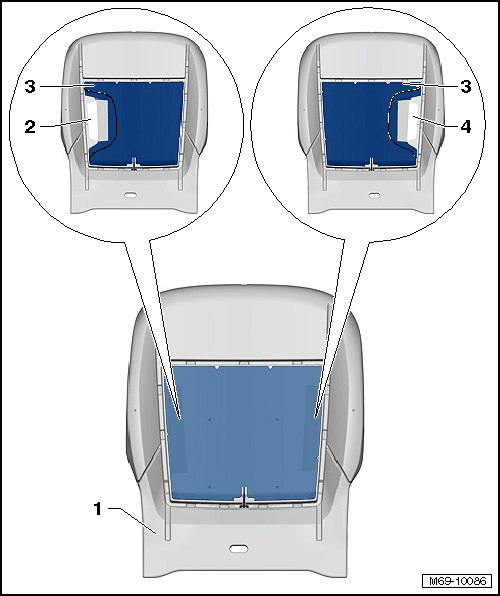

-- Remove the peel-off backing from the left adhesive strip -2-.

-- Press the pressure sensor -3- onto the cushion -1- using light pressure. Make sure it has no kinks.

-- Remove the peel-off backing from the right adhesive strip -4-.

-- Press the pressure sensor -3- onto the cushion -1- using light pressure. Make sure it has no kinks.

Fig 4: Identifying Front Adhesive Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

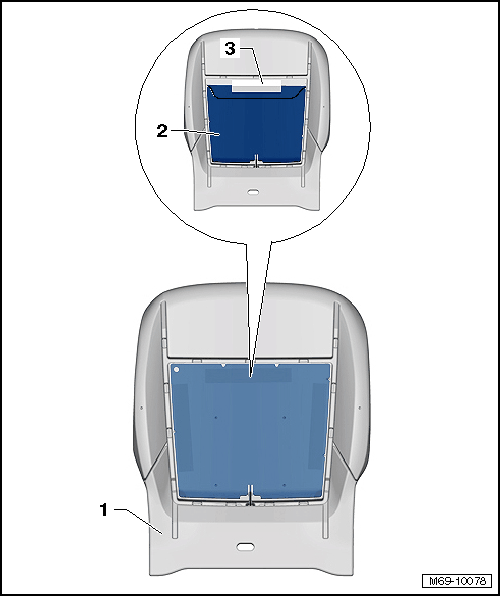

-- Remove the peel-off backing from the front adhesive strip -3-.

-- Press the pressure sensor -2- onto the cushion -1- using light pressure. Make sure it has no kinks.

-- Install and secure the pressure sensor wiring harness -4- to the seat frame -3-, as illustrated below.

Fig 5: Connect The Connector -1- On The Wiring Harness -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector -1- on the wiring harness -4- to the Passenger Occupant Detection System Control Module -J706- -2-.

Further Assembly is Performed in Reverse Order.

WARNING:

Ensure no one is in the vehicle when the battery is connected.

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
